Boat chain Grade 2

for shipsanchorstud link

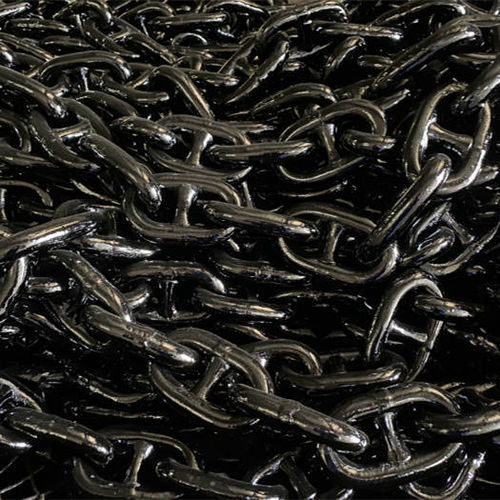

Boat Anchor Chain Grade 2 is a marine stud-link anchor chain designed for ship, boat and vessel anchoring applications, offered in Grade 2 steel. It is supplied by Wuhan Jiangnan Anchor Chain Co., LTD (JNAC), a Chinese anchor chain manufacturer with relevant classification society approvals.

Chain load table (Proof Load kN / Break Load kN / Weight of 27.5m shot kg)

• Header: Chain diameter (mm) | Proof Load Grade II (kN) | Proof Load Grade III (kN) | Break Load Grade II (kN) | Break Load Grade III (kN) | Weight of 27.5m (kg)
• 16 | 107 | 150 | 150 | 216 | 160
• 17.5 | 127 | 179 | 179 | 256 | 190
• 19 | 150 | 211 | 211 | 301 | 230
• 20.5 | 175 | 244 | 244 | 349 | 265
• 22 | 200 | 280 | 280 | 401 | 300
• 24 | 237 | 332 | 332 | 476 | 365
• 26 | 278 | 389 | 389 | 556 | 420
• 28 | 321 | 449 | 449 | 642 | 490
• 30 | 368 | 514 | 514 | 735 | 565
• 32 | 417 | 583 | 583 | 833 | 635
• 34 | 468 | 655 | 655 | 937 | 720
• 36 | 523 | 732 | 732 | 1050 | 800
• 38 | 581 | 812 | 812 | 1160 | 879
• 40 | 640 | 895 | 895 | 1280 | 980
• 42 | 703 | 981 | 981 | 1400 | 1082
• 44 | 769 | 1080 | 1080 | 1540 | 1188
• 46 | 837 | 1170 | 1170 | 1680 | 1298
• 48 | 908 | 1270 | 1270 | 1810 | 1413
• 50 | 981 | 1370 | 1370 | 1960 | 1526
• 52 | 1060 | 1480 | 1480 | 2110 | 1645
• 54 | 1140 | 1590 | 1590 | 2270 | 1774
• 56 | 1220 | 1710 | 1710 | 2430 | 1906
• 58 | 1290 | 1810 | 1810 | 2600 | 2051
• 60 | 1380 | 1940 | 1940 | 2770 | 2194
• 62 | 1470 | 2060 | 2060 | 2940 | 2338
• 64 | 1560 | 2190 | 2190 | 3130 | 2492
• 66 | 1660 | 2310 | 2310 | 3300 | 2650
• 68 | 1750 | 2450 | 2450 | 3500 | 2836
• 70 | 1840 | 2580 | 2580 | 3690 | 2982
• 73 | 1990 | 2790 | 2790 | 3990 | 3274

Anchor chain link dimensions (d → l / p / w) in mm

• Header: d (mm) | l (mm) | p (mm) | w (mm)
• 16 | 96 | 64 | 58
• 17.5 | 105 | 70 | 63
• 19 | 114 | 76 | 68
• 20.5 | 123 | 82 | 74
• 22 | 132 | 88 | 79
• 24 | 144 | 96 | 86
• 26 | 156 | 104 | 94
• 28 | 168 | 112 | 101
• 30 | 180 | 120 | 108
• 32 | 192 | 128 | 115
• 34 | 204 | 136 | 122
• 36 | 216 | 144 | 130
• 38 | 228 | 152 | 137
• 40 | 240 | 160 | 144
• 42 | 252 | 168 | 151
• 44 | 264 | 176 | 158
• 46 | 276 | 184 | 166
• 48 | 288 | 192 | 173
• 50 | 300 | 200 | 180
• 52 | 312 | 208 | 180
• 54 | 324 | 208 | 187
• 56 | 336 | 224 | 202
• 58 | 348 | 232 | 209
• 60 | 360 | 240 | 216
• 62 | 372 | 248 | 223
• 64 | 384 | 256 | 230
• 66 | 396 | 264 | 238
• 68 | 408 | 272 | 245
• 70 | 420 | 280 | 252
• 73 | 438 | 292 | 263

Manufacturer & product notes

• Manufacturer: Wuhan Jiangnan Anchor Chain Co., LTD (JNAC), established 1987, specialized in marine anchor chain production and outfitting products.
• Anchor chain types: stud link and studless link — stud link chains offer greater strength and resistance to twisting when stacked.
• Steel grade explanation: graded anchor chain steel divided into M2 (no heat treatment) and M3 (heat treated) where higher grade gives higher tensile strength and may allow reduced link size for same strength.

Caractéristiques / spécifications techniques

• Material: CM490, CM690
• Technology: Flash Butt Welding
• Use: Marine hardware fittings for ship, boat and vessel
• Size range (link diameter d): ø16 mm – ø72 mm (tables provide detailed values up to ø73 mm)
• Surface options: Black bituminous painting, Hot-dip galvanizing (HDG), No painting
• Chain composition: Common link, Enlarge link, End link
• Accessories: Kenter shackle, Anchor shackle (end shackle, D shackle), Swivel
• Payment terms: T/T; L/C at sight
• Delivery time: 7-35 days after order confirmed
• Port of shipment: WUHAN / SHANGHAI, CHINA
• Certificates / approvals: CCS, BV, ABS, KR, RS, ISO 9001, ISO 45001, ISO 14001
