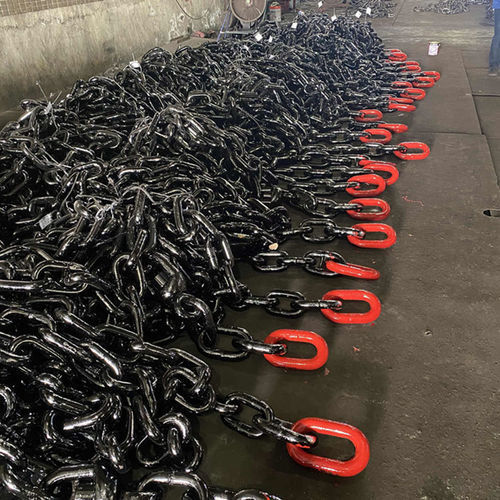

Ship chain

for harborfor marinasmetal

Overview
Studless buoy chains are purpose-built marine chains for mooring and fixing buoys, providing secure links between buoys and anchor systems for navigation, marking and mooring operations. Available with multiple material grades, surface treatments and accessory options to match operational requirements.

Key features / Technical specifications

• Material: CM490, CM690
• Technology: Flash butt welding
• Use: Buoy mooring, mooring systems
• Size range: Ø16 mm – Ø38 mm
• Surface treatments: Black bituminous painting; Hot-dip galvanizing (HDG); No painting
• Composition: Studless link, enlarged (saddle) link, end link
• Accessories: Kenter shackle; Anchor shackle (end shackle, D shackle); Swivel; G-2130 shackle; Omega shackle; etc.

Typical buoy & chain configurations

• 1.8 m diameter float with Φ28 mm saddle / short / half / long chain
• 2.4 m diameter float with Φ38 mm saddle / short / half / long chain
• 3.0 m diameter float with Φ42 mm saddle / short / half / long chain

Chain components and roles

• Bridle (saddle) chain: distributes load to the float
• Short chain: typically ~4.5 m with an odd number of links and a swivel to reduce twist
• Half chain and long chain: provide scope and catenary for mooring
• End shackles larger than connecting shackles; swivels to reduce entanglement

Certificates & commercial terms

• Certificates: BV, DNV, KR, CCS, RS
• Delivery time: 7–35 days after order confirmation
• Payment terms: T/T; L/C at sight
• Port of shipment: Wuhan / Shanghai, China
• Data & references: marine anchor chain dimensions and marking anchor chain lengths (product data images provided)
