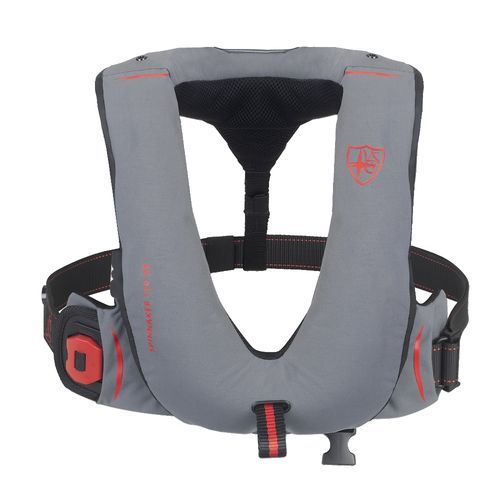

Inflatable life jacket SPINNAKER 180 – EASYFIT HX

self-inflatingHammar Hydrostaticmanual

Overview
The SPINNAKER 180 – EASYFIT HX is an inflatable lifejacket delivering 180N real buoyancy and certified to ISO 12402-3. Ergonomically designed for maritime use, it is lightweight, comfortable over bulky clothing and compatible with main automatic and manual activation systems.

Description
Very open V-front and deep rear neckline improve wearability over heavy garments. Padded mesh contact areas increase comfort. The housing closes with protected sliding semi-dial hinges that open instantly on inflation via the Burst system. Integrated ISO-certified harness with buckle closure is incorporated. The buoyancy chamber is manufactured with electronically controlled high-frequency welding and high-visibility PA 420 PU coated fabric. Supplied with a 38 g CO2 cylinder featuring an anti-unscrewing locking system. Design considerations include female fit: the high, inclined activator position supports a truly unisex fit. A rubber protective cover is fitted on Hammar hydrostatic versions.

Performance and stability in water
Single-compartment buoyancy chamber in PA 420 PU coated fabric with electronic high-frequency welds ensures optimal in-water position and excellent stability. Buoyancy rotates and tilts an unconscious person to keep airways clear. Even when inflated, the jacket allows easy swimming to reach safety or to board a life raft.

Activation types

• Automatic activation: On immersion the automatic system activates inflation within 5 seconds. Compatible with UML MK5 (soluble tablet salt activator) or Hammar MA1 (hydrostatic activator, activates from ≥10 cm immersion).
• Manual activation: Activated by pulling the manual lever. Supplied with UML MICROMANUAL and activates only by hand.

Technical specifications

• Model: SPINNAKER 180 – EASYFIT HX
• Brand: Veleria San Giorgio
• SKU: 09330/25/HX/EASYFIT
• Size: Adult
• Buoyancy class: 150
• Certification: ISO 12402-3
• Real buoyancy: 180N
• Supported weight: > 40 Kg.
• Chest size: 80/125 cm
• Service / inspection interval: 24 months
• Certified harness: ISO 12401
• CO2 cylinder: 38 g (anti-unscrewing)
• Indicative weight: 1.45 kg
• Construction: single-compartment PA 420 PU coated buoyancy chamber, high-frequency welded
• Included accessories: crotch strap, integrated harness, protected sliding hinges with Burst opening, padded mesh contact areas, rubber protective cover for Hammar version
• Compatible activators: UML MK5 (salt), Hammar MA1 (hydrostatic), UML MICROMANUAL (manual)
