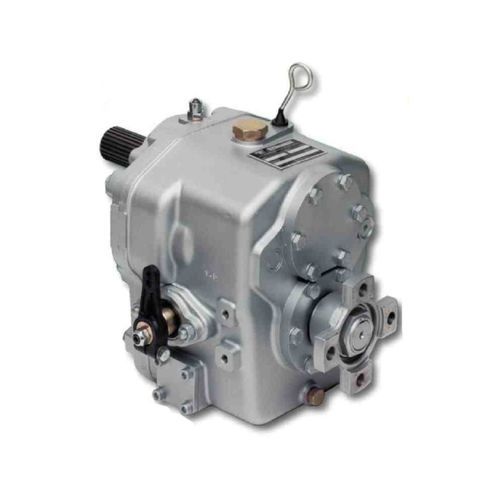

Ship reduction gearbox TMC260

marinemotortransmission

The TECHNODRIVE TMC260 marine transmission for vessels is equipped with conical clutches, mechanically operated and controlled via a servo system. The gears, specifically designed to ensure quiet operation, are complemented by oversized bearings that ensure greater durability and exceptional performance. Engine - Manufacturer - Clutch actuation - Output º - Red. MINI-33 - Technodrive - Mechanical - 0 - 2.88:1 MINI-44 - Technodrive - Mechanical - 0 - 2.00:1 MINI-55 - Technodrive - Mechanical - 0 - 2.00:1 MINI-62 - Technodrive - Mechanical - 0 - 2.00:1 MINI-74 - Technodrive - Mechanical - 0 - 2.00:1 SK-60 - Technodrive - Mechanical - 0 - 1.54:1 SM-82 - Technodrive - Mechanical - 0 - 1.54:1 SM-94 - Technodrive - Mechanical - 0 - 1.54:1 Oil - ATF Oil cap. - 1,2 L Max. Oper. º - 15 º Weight - 18 Kg Max. Temp - 95 ºC Gearbox type - RECTO Reduction ratios Forward - Reverse 1.54:1 - 2.00:1 2.00:1 - 2.00:1 2.47:1 - 2.47:1 2.88:1 - 2.47:1
