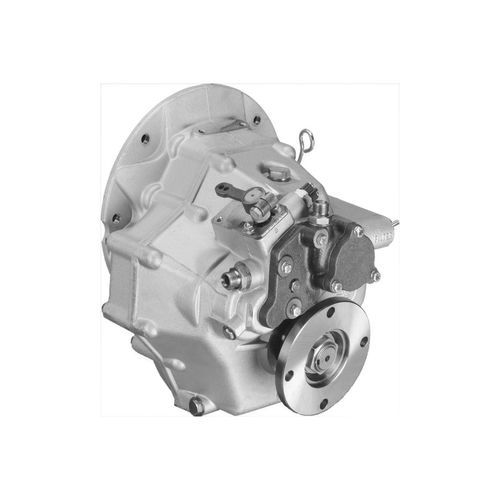

Ship reduction gearbox TM345A

marinemotortransmission

The TM345A marine transmission has an aluminium alloy housing and is equipped with hydraulically activated multiple disk clutches. The clutches and gears have been designed to transmit full power, with the same transmission ratio in forward and reverse. The 8º angle of depression of the output shaft makes it possible to correctly install the marine engine-transmission set on planning or semi-displacement hulls. Engine - Manufacturer - Output º - Red. MINI-29 - Technodrive - 2.00:1 MINI-33 - Technodrive - 2.00:1 MINI-44 - Technodrive - 2.00:1 MINI-55 - Technodrive - 2.00:1 MINI-62 - Technodrive - 1.54:1 MINI-74 - Technodrive - 2.00:1-2.00:1 SK-60 - Technodrive - 1.54:1 SM-82 - Technodrive - 1.54:1 SM-94 - Technodrive - 1.54:1 Oil - SAE 15W40 Oil cap. - 1,6 L Max. Oper. º - 15 º Output º - 8 º Weight - 25 Kg Max. Temp - 95 ºC Gearbox type - INCLINADO Reduction ratios Forward - Reverse 1.54:1 - 1.54:1 2.00:1 - 2.00:1 2.47:1 - 2.47:1
