Mechanical couplings

Type A Flexible Couplings allows the torque transmission from the marine engine to the gearbox cushion the heavy torsional vibrations produced at a low engine speeds.

Type B Flexible Couplings are installed between the marine engine and the gearbox allowing the torque transmission ?s variations.

Type C Flexible Couplings allows the torque transmission from the engine to the gearbox ?s variations.

... When you drive through KFBD coupling you profit by these Basic Benefits. 1 – Frees engine during heavy starts. During heavy starts and sudden running load increases, engine lugging is prevented. The Fluid Coupling ...

... When you drive through Transfluid Coupling you profit by these Basic Benefits. Frees engine during heavy starts During heavy starts and sudden running load increases, engine lugging is prevented. The Fluid Coupling ...

... competitive price. Atex certification is available too. CONFIGURATION Couplings can be provided: with or without hub with spline or keyway with conical locking coupling with housing for hydrostatic ...

... support to protect engine crankshafts from the reaction forces coming from high angle cardan shaft connections. – Flexible couplings protect power train system Application – Useful for devices generated by ...

Rubber/metal joints FC01140 for flexible couplings 4".

Rubber/metal joints FC02200 for flexible couplings 4"/5".

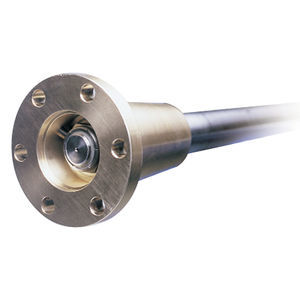

Standard coupling flange (made of stainless steel with antioxidant surface treatment) Couplings made of stainless steel Aisi 304 and different special versions also available.

... jobs. CJR can offer a range of shaft couplings: keyed tapered keyless tapered parallel clamped Bespoke couplings can be designed to overcome common issues whereby there is limited space inboard. ...

... through insertion of the elastic torsional coupling between the engine and the gearbox. The coupling’s purpose is to reduce (dampen) torsional vibrations of diesel engines and to reduce torque oscillations. ...

... through insertion of the elastic torsional coupling between the engine and the gearbox. The coupling’s purpose is to reduce (dampen) torsional vibrations of diesel engines and to reduce torque oscillations. ...

... through insertion of the elastic torsional coupling between the engine and the gearbox. The coupling’s purpose is to reduce (dampen) torsional vibrations of diesel engines and to reduce torque oscillations. ...

Manufactured in steel and machined on CNC, clamp couplings can be adapted on all gearbox referred below. Very easy to install, they make it possible to adjust the length of the shaft during the assembly.

Manufactured in steel, the tapered coupling can be adapted on all gearbox referred below. The machining on CNC authorizes a perfect fitting, which will be checked using the Prussian blue.

The Vibraless coupling comprises a flexible disc in polyurethane which absorb the starting torque when you drive in both forward and reverse, the vibrations and to isolate the shaft from the engine. In the case of a possible ...

... standard The torsionally flexible jaw coupling ROTEX Standard is an elastomer coupling with feather keyway and particularly low-cost due to its simple structure. For mounting the hubs of the elastomer ...

In addition to the cardan shaft series coupling program VULKAN has developed the VULKAN ISS, the Integral Shaft Support. The ISS fitts in installations where the cardan shaft has a large angle of inclination. The ISS ...

... the angle of the shaft line, particularly when the engine uses soft rubber mounts. Using a single SigmaDrive replacement coupling will ensure the shaft is correctly aligned at all times, especially under high load. The ...

Articlecode Shaft diameter Diameter Gearbox Flange Weight Max. Thrust Max. Torque (Pleasure) Max. Torque (Commercial) AI.030.22025 ø25 mm ø101 mm 4″ 2,1 kg 2,1 kN 280 Nm 175 Nm AI.030.22030 ø30 mm ø101 mm 4″ 2,1 kg 2,1 kN 280 Nm 175 ...

... flanges in a range of designs and materials. Our flanges can be designed to fit most apllications, both gearboxes and flexible couplings for shafts with a diameter up to 300 mm. Mounting of the flange to the propeller ...

... 3F Series coupling system incorporates industry proven SGFlex couplings with solid steel flanges or flywheel combinations to provide an integrated solution to our customers. SGFlex couplings ...

SPW Coupling the optimum connection from the gear to the propeller shaft for a power transmission showing low vibrations within the power train. By using modern joint discs which are applied in manifold manners within ...

... system. These units are available from 10 up to 3000 kW applications. They are always used in combination with flexible couplings or plunging joints. ptions The Orion Thrust block is available in different stan- ...

Nitrile (NBR) and natural rubber bushings galvanized carbon steel

Walter Clamp-Fit Propeller Shaft Couplings grip the entire diameter of the shaft The Clamp-Fit design compensates for small size variations in propeller shafting, providing an accurate connection between the transmission ...

An Aquadrive system will reduce structure borne noise and vibration by up to 90%. It will reduce overall noise levels by up to 75%. It will end shaft alignment problems on installation, and for ever more! It will allow the engine to ...

Made with computer technology (CNC), they are suitable for any type of drive. They are produced in a standard version with C45 material. On request, we can also make them with 25-micron White Zinc-coating.

The Voith fluid couplings types TP, DTPK and TPZS are fill-controlled couplings for ship drives. The coupling dampens torsional vibrations, impacts and shock loads that are caused by ...

Features DN flanges JIS flanges ANSI flanges Xtronica has a wide range of flanges for installation. We also design special types for adaption to existing equipment.

... machining is required. And, you don't have to haul your boat out of the water. just separate the drive flanges, insert the coupling, align DRIVESAVER® and bolt together.

... and are fully captive to keep the engine in place even if the vessel turns over. Pre-machined gearbox coupling kits allow trouble-free coupling to almost any marine gearbox transmission. All exposed ...

Dampers BAYSAN Marine has developed a wide range of Damper Drive Plates to fit most engine/gearbox combinations. Reduces gear noise, o allows engine to run at lower speeds, stops spline wear. All dampers are designed to be Fail-Safe ...
