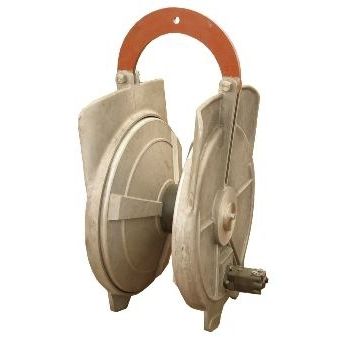

Net hauler HRP7-M1HHRP7-M1H

net hauler
net hauler
Add to favorites
Compare this product


Description

Standard equipment - Aluminium drum in two parts, conical, dimensions D=900/240, B=332/80 mm, - Teeth (to prevent net sliding) integrated on the drum, 3+3 pieces - Winch frame halves (left and right) - Shaft (static) D = 90 mm, length 490 mm - Drum bearings with oil seals - Drive group: orbital hydro-motor, two gears without housing - Openable yoke Additional equipment - Hydraulic pump Gr 3 with pipe connections - Hydraulic oil tank (INOX) with equipment (filler breather, return filter, sight level gauge, oil outlet with valve), - Operating distributor with relief valve - Hydraulic hoses with connections length L = ___ m - Oil filter with connections Description Puretic is designed for lifting (pulling out, collecting) fishing nets, purse seine nets or tuna fishing nets. Technical data: - torque on the drum M=7 kNm - number of drum revolutions n=23 rpm - pulling force (at middle diameter) Fmid=40 kN - pulling force (at minimum diameter) Fmax=50 kN - minimum drum diameter Dmin=240 mm - middle drum diameter Dmid=350 mm - maximum drum diameter Dmax=900 mm - spooling speed (average) v=25 m/min - transmission ratio i=8,64:1 - torque on the hydro-pump M=170 Nm - power of drive engine P=22 kW - weight G=180 kg - material AlMg5 Info At Customer's request, changes can be made if technically feasible. SCAM marine gives a 1-year warranty for its Puretic blocks starting from the delivery date.
