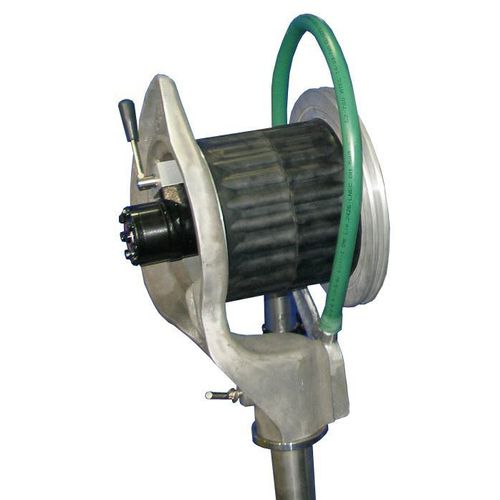

Net hauler HRP03-MN1H-gHRP03-MN1H-g

net hauler
net hauler
net hauler
Add to favorites
Compare this product


Description

Standard equipment - Aluminum drum in two parts with rubber skirt, diameter 240 mm, length 200 mm, with grooved fishing line pooling crown - Drum support with clevis and rail guard - Drive group: orbital hydro-motor, operating distributor (installation onto hydro-motor), hydraulic gear-pump Gr2 with pipe connections, mechanical coupling Gr1-2 with adapter - Stainless steel stand-pipe with fixing plate and elbows - Hydraulic hoses (above deck) - Hydraulic oil tank (plastic), complete (with filler breather, return filter, sight level gauge and oil outlet with ball valve) - Hydraulic hoses (under deck) Additional equipment - Electromagnetic instead of mechanical clutch - Stainless steel instead of plastic oil tank - Operating distributor (separated from the motor) with foot lever and cable - Parts for installing propulsion – on engine (at the request): belt wheels on the coupling and front side of the engine mounting of coupling with pump belt Description Puretic is designed for lifting (pulling out, collecting) fishing nets, i.e. fishing lines. Technical data: - Torque on the drum outer edge M = 0,3 kNm - Drum max. revolutions n = 35 revs/min - Max pooling force on the drum F = 2.5 kN - Drum minimum diameter D = 240 mm - Drum crown max diameter Dc = 330 mm - Average pooling speed V = 27 m/min - Weight G = 18 kg - Construction material AlMg5 Info - At Customer’s request, changes can be made if technically feasible - SCAM marine gives a 1-year warranty for its Puretic blocks starting from the delivery date.

Catalogs

No catalogs are available for this product.

See all of SCAM-Marine d.o.o.‘s catalogs
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
