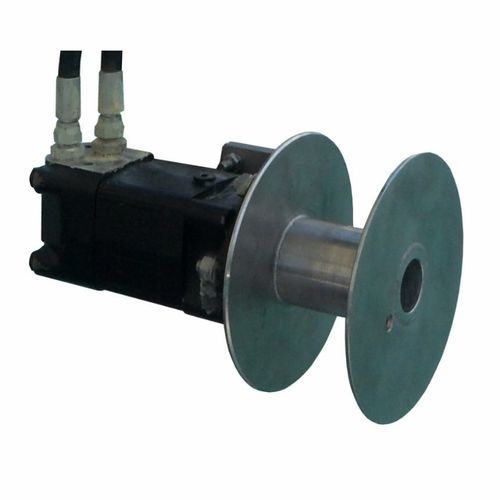

Ship winch
cargo securinghydraulic drivesingle-drum

ship winch
ship winch
Add to favorites
Compare this product


Characteristics

Application domain
for ships
Use
cargo securing
Drive mechanism
hydraulic drive
Technology
single-drum

Description

Standard equipment - INOX drum, dimensions 210/70 x 100 mm - INOX drum support - Drive group: orbital hydro-motor, operating distributor (installation separate from hydro-motor), - Hydraulic hoses (from hydro-motor to distributor) Additional equipment - Hydraulic gear-pump Gr2 with pipe connections - Mechanical coupling Gr1-2 with adapter - Hydraulic oil tank (plastic), complete (with filler breather, return filter, sight level gauge and oil outlet with ball valve) - Hydraulic hoses (under deck) - Electromagnetic instead of mechanical clutch - Stainless steel instead of plastic oil tank - Parts for installing propulsion – on engine (at the request): belt wheels on the coupling and front side of the engine mounting of coupling with pump belt Description On drums is required to roll up the rope diameter 10 mm, length 30 m. The free end of the rope is carried over the pulley and set the hook. By turning the drum may be lifting the cargo. Technical data: - Torque on the drum outer edge M = 0,9 kNm - Drum max. revolutions n = 32 revs/min - Max pooling force on the drum (d=150 mm) F = 12 kN - Drum minimum diameter D = 70 mm - Drum wheel max diameter Dc = 210 mm - Average pooling speed V = 15 m/min - Weight G = 25 kg - Construction material INOX Info - At Customer’s request, changes can be made if technically feasible - SCAM marine gives a 1-year warranty for its products starting from the delivery date
