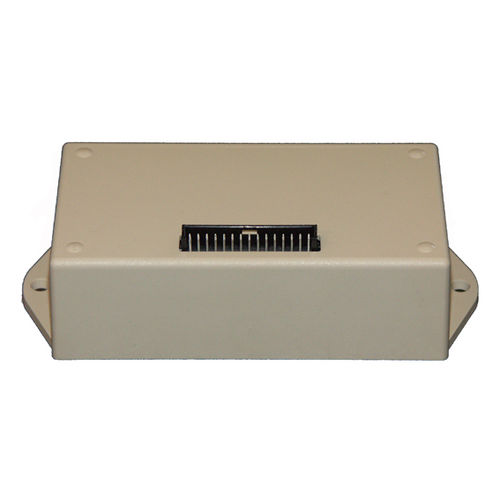

Boat monitoring and control system UNS10185

engine room

The UNS10185 module is the smallest and most compact of our monitoring systems. Thanks to digital outputs and to the R.I.N.A approval it can also be used as an alarm and stop system for certified engines Inputs: 1 x Frequency / 5 x Analogue / 3 x Digital ON/OFF ________________________________________________________ Outputs: 4 x Transistor push-pull, max 1A ________________________________________________________ Communication Ports: 1 x CANBUS + 1 x RS232 / NMEA0183 ________________________________________________________ Data recording: 128Kbytes memory ________________________________________________________ Dimensions: 145 x 66 x 50 mm ________________________________________________________ Weight: <0.5Kg ________________________________________________________ Power supply: 12/24 VDC
