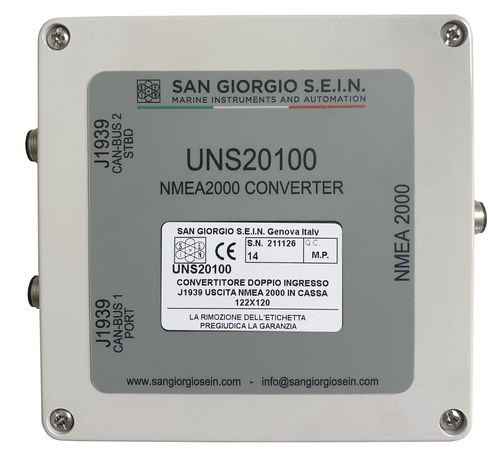

Signal converter UNS20100
analogNMEA

signal converter
signal converter
Add to favorites
Compare this product

Characteristics

Type
signal
Input
analog
Output
NMEA

Description

Double CAN Bus J1939 engine NMEA2000 output converter. Read the main parameters from two ECU engines and convert them into NMEA2000 output to connect last generation plotters and/or integrated navigation systems. Dimensions: 122 x 120 x 55 mm ________________________________________________________ Power supply: 12/24V <250mA (J1939) / LEN = 1 (NMEA2000) ________________________________________________________ Inputs: 2 x CAN Bus J1939 (M12-5 pin) ________________________________________________________ Output: 1 x NMEA2000 (M12-5 pin) ________________________________________________________ Protection grade: IP65 ________________________________________________________ Operating temperature: -20 +70 °C
