Characteristics
- Type
- signal
- Input
- analog
- Output
- NMEA
- Application domain
- marine
Description

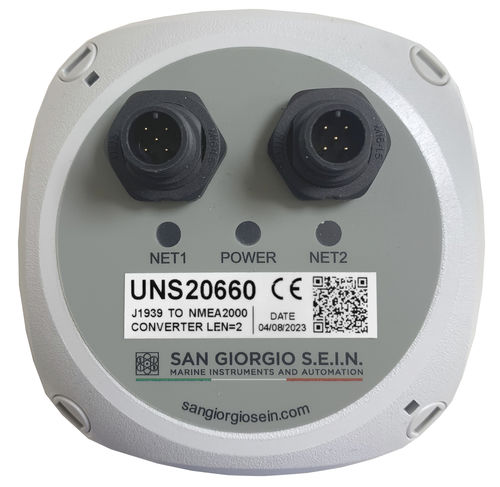

Single CAN Bus J1939 engine NMEA2000 output converter. Read the main parameters from two ECU engines and convert them into NMEA2000 output to connect last generation plotters and/or integrated navigation systems.
Dimensions: 93 x 93 x 62 mm
________________________________________________________
Mounting hole: 108 mm (2 x mounting brackets)
________________________________________________________
Power supply: 12-24V - <500mA
________________________________________________________
Connectors: 2 x M12-5 pin
________________________________________________________
Case material: PC-GFS (polycarbonate)
________________________________________________________
Protection grade: IP67
________________________________________________________
Operating temperature: 0 +55 °C
