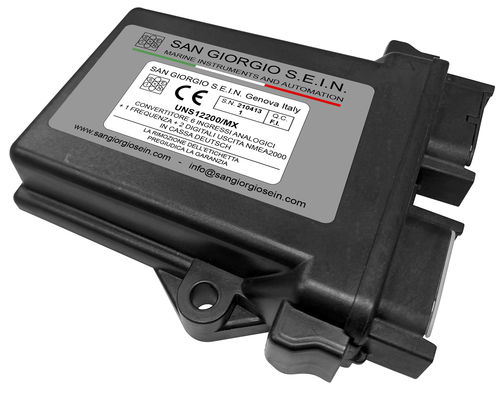

Signal converter UNS12200/MX
analogNMEAfor boats

signal converter
signal converter
Add to favorites
Compare this product

Characteristics

Type
signal
Input
analog
Output
NMEA
Application domain
for boats

Description

Multifunction programmable converter provided with several analog input. Can be used to acquire and convert analogue signals from different measure sensors to J1939 or NMEA2000 compatible protocols. Dimensions: 133 x 118 x 35 mm ________________________________________________________ Power supply: 12/24V <500mA ________________________________________________________ Connection: 2 x Deutsch DTM06 ________________________________________________________ Inputs: 1 x Engine RPM W 1 x Water temperature 280-22 ohm 1 x Oil pressure 10-180 ohm 1 x Fuel level 10-180 ohm 1 x Battery voltage 1 x Rudder angle sensor ________________________________________________________ Alarm inputs: 1 x Low battery voltage 1 x Low oil pressure 1 x High water temperature ________________________________________________________ Output: 1 x NMEA2000 communication port ________________________________________________________ Protection grade: IP65 ________________________________________________________ Operating temperature: -10 +55 °C
