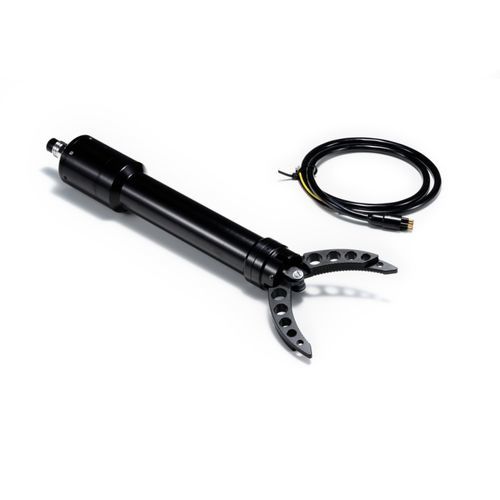

ROV gripper 2-DOF

This product is a high-performance 2-degree-of-freedom waterproof robotic claw designed for harsh underwater environments. Equipped with a high-torque BLDC brushless planetary gear motor and integrated smart drive system, it delivers precise control, rapid response, and exceptional durability. The T6 aluminum alloy claw head and 316 stainless steel transmission shaft enable reliable operation at depths up to 300 meters. Key words: Underwater Robotic Gripper, BLDC Motor Claw, Industrial-Grade Robotic Arm, Submersible Manipulator - OEM supplier for leading subsea technology companies - 10,000+ hours MTBF (Mean Time Between Failures) - Hardened trapezoidal lead screw - IP68-rated dual-sealing system - RS-485 communication protocol - Compatible with OpenROV, BlueROV, and mainstream robotic platforms - 90-150N clamping force (9-15kg @24VDC) - Space-saving design: Ø57×408mm (collapsed) - Interchangeable end-effectors - Supports custom tooling integration Parameter | Specification | Condition --- | --- | --- Operating Depth | ≤300m | Saltwater resistant Clamping Force | 90-150N (9-15kg) | @24VDC Response Time | ≤3s (full open/close cycle) | 24VDC input Power Requirements | 20-25.2V DC | 1A max current Communication Protocol | RS-485 | 115200 baud rate Cable Configuration | 4×20AWG shielded cable | 1m standard length Weight | 1410g | In air - Adaptive torque-based auto-stop - Over-current/Over-voltage protection - Reverse polarity protection
