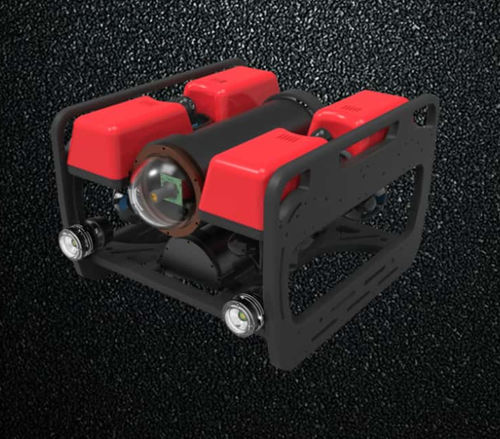

Observation ROV EDGE P6

lightportablecompact

The EDGE P6 is an observation-class remotely operated underwater vehicle (ROV) designed for underwater exploration, search missions, and educational purposes. Its lightweight and compact design ensures effortless portability, allowing a single adult to easily carry it. - Ideal for underwater observation, search missions, and STEM education. - Robust performance for industrial and research applications. - Customizable for advanced users and developers. - Perfect for fieldwork and educational demonstrations. Dimensions: 430×390×220mm Weight: 10kg Material: HDPE frame + aluminum alloy sealed cabin Max Operating Depth: 300 meters Payload Capacity: 2kg (expandable) Propulsion System: DC pump jets (4 horizontal thrusters in vector layout + 2 vertical thrusters) Capacity: 6S4P 10Ah or Outland power supply solution Component: Enclosure - Dimensions: 472*216mm - Material: New PP engineering plastic - Waterproof Rating: IP67 (non-waterproof when open) Screen - Size: 15.6″ - Refresh Rate: 60Hz - Brightness: 1000cd/m² Host - Processor: Intel Core Dual-core - Graphics Card: Intel HD Graphics 620 (128MB) - Memory: 4GB (Hynix DDR3L 1600MHz) - Main Storage: BR120G (120GB SSD) Structure: A manual winding reel can be bought Cable Diameter: 4.5mm Length: 60m Tensile Strength: 70kg Protective Sheath: Kevlar water-resistant material Conductor: 2*26AWG twisted pair Arm Length: 400mm (max extended) Maximum Gripping Diameter: 90mm Clamping Force: 90- 150N (9-15kg @24VDC) Maximum Instantaneous Load: 2.4N.m Operational Depth: ≤300m Technical specifications are subject to change. ROVMAKER reserves the right to modify product design and specifications. - Compact and Portable - User-Friendly Operation - 300-Meter Depth Capability - Fully Open-Source Design - Cost-Effective Performance
