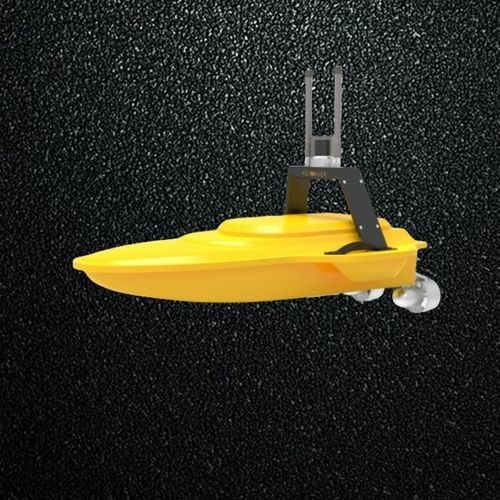

Hydrographic survey USV YS-ROV-001-1-2-1-1-1

autonomouselectricmonohull

Roboat is a portable unmanned surveying vessel designed for easy deployment by a single operator. Its compact and lightweight structure allows quick water entry. The modular payload bay at the bottom supports interchangeable modules such as sonar scanning, laser ranging, visual observation, and water sampling, making it ideal for underwater mapping and sample collection. The above technical parameters are subject to the actual products. ROVMAKER reserves the right to change product design and planning. - High efficiency and high precision - Modular design - 300-meter deep diving - Strong expandability - Underwater high-definition imaging - High protection level - Simple operation - Multiple energy sources - Dimensions: 1050mm × 700mm × 550mm - Weight: 15kg - Hull Material: Fiberglass - Propulsion: 2 foldable thrusters for safe transport and rapid deployment - Thrust: Maximum forward thrust: 20kg - Speed: 10 knots (5m/s) - Communication: Dual 4G/WIFI antennas for stable real-time remote control - Control: Autonomous cruise with pre-defined routes or manual real-time operation - Camera: 4K/60fps & 1080P/120fps video; 3-axis mechanically stabilized gimbal for omnidirectional view - Operating Temperature: −10°C to 40°C - Battery: 12S battery (48V) with 3-hour runtime
