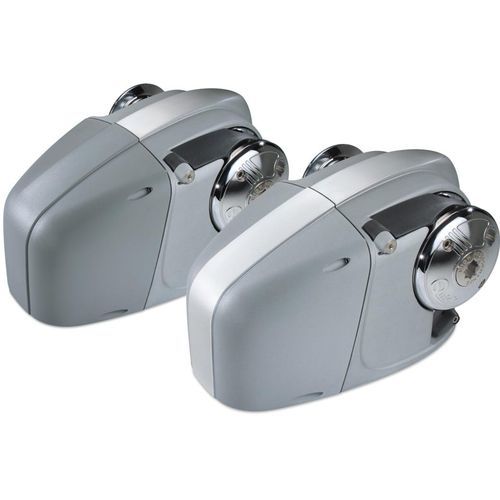

Electric windlass Hector - HC3

for boathorizontalabove deck

Horizontal on-deck windlasses - Base in anodized aluminium in hard oxide - Jacket in composite material or in aluminium anodized in hard oxide - With and without drum - Rope and chain on a single gypsy - Integrated sensor and magnet for chain counter - Supplied with pressure lever - Integrated solenoids unit - Emergency manual lift system - Manual Free-Fall system - IP66 watertight motor For boats from 7 to 15 metres (23 - 50 ft) - Hector 700 W: 7 - 10 m (23 - 33 ft) - Hector 1000 W: 10 - 13 m (33 - 43 ft) - Hector 1500 W: 12 - 15 m (39 - 50 ft) Gypsy and Drum: Ø 130 mm / 5"1/8 GYPSY - 8 mm - 5/16" - 10 mm - 3/8" CHAIN - 8 mm: DIN 766, ISO, G4, BBB - 10 mm: ISO(P.30), G4 ROPE - 1/2" (12.7 mm), 9/16" (14.2 mm), 5/8" (15.8 mm) The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the "Quick®" system. Optional accessories: - Hydraulic magnetic circuit breaker - UP/DOWN control board - Foot Switches - Handheld remote control - Chain counters - Radio remote control Technical Specifications / Features: - Horizontal on-deck windlass for boats from 7 to 15 metres (23 - 50 ft) - Available in 700 W, 1000 W, and 1500 W versions - Base: anodized aluminium in hard oxide - Jacket: composite material or anodized aluminium - Gypsy and drum diameter: 130 mm / 5"1/8 - Chain compatibility: 8 mm (DIN 766, ISO, G4, BBB), 10 mm (ISO(P.30), G4) - Rope compatibility: 1/2" (12.7 mm), 9/16" (14.2 mm), 5/8" (15.8 mm) - Integrated sensor and magnet for chain counter - Integrated solenoids unit - Manual Free-Fall and emergency manual lift system - IP66 watertight motor - Supplied with pressure lever
