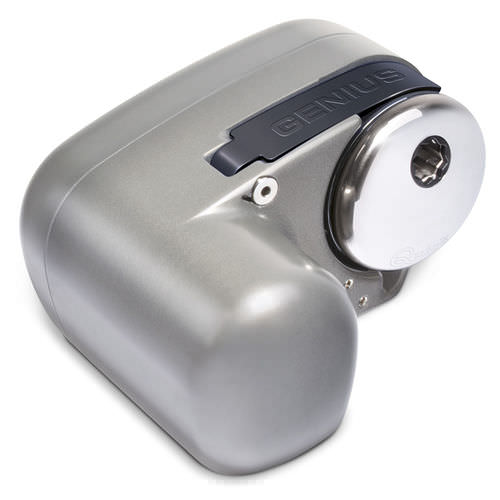

Electric windlass GP2
boathorizontalabove deck

electric windlass
electric windlass
electric windlass
electric windlass
electric windlass
electric windlass
electric windlass
electric windlass
electric windlass
electric windlass
Add to favorites
Compare this product


Characteristics

Operation
electric
Application domain
boat
Mounting
horizontal
Set-up
above deck
Number of drums
single-drum
Function
aluminum base, automatic free-fall
Working load

Min.: 35 kg
(77 lb)

Max.: 350 kg
(772 lb)

Engine power

150 W, 250 W, 500 W, 800 W
(0 hp, 0 hp, 1 hp, 1 hp)

Power supply

12 V, 24 V

Chain diameter

6 mm, 7 mm, 8 mm
(0 in, 0 in, 0 in)

Boat length

Min.: 6 m
(19'08" )

Max.: 13 m
(42'07" )

Description

Horizontal on-deck windlasses Anodized alluminium in hard oxide base White composite material base (GP2 500) Rope and chain on a single gypsy Integrated sensor and magnet for chain counter Available with manual Free-Fall system (GP2 500 only manual) Supplied with pressure lever IP66 watertight motor Epicyclical gearbox (GP2 1500-2000) GP2 FF - Automatic Free-Fall System The Free-Fall technology applied to the Genius windlass allows free running of chain through the gypsy when lowering the anchor; simply by depressing the down control button the windlass will release its clutch and the gypsy will freewheel. To stop the Free-Fall depress the up control button on the windlass; the clutch will engage stopping the gypsy and allowing retrieval of the chain.
