bow thruster / for boats / electric / tunnel type
tunnel type, twin-prop
11.9 kW (16.2 hp)

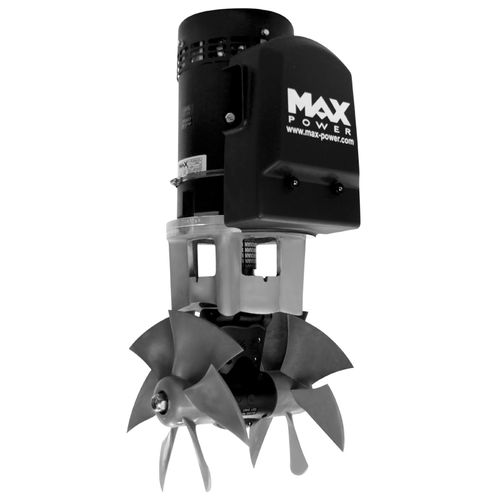

The 24V CT165 is ideally suited to motor boats and deep footed sailing yachts ranging from 40’-62’. Manufactured using composite materials, this model has twin propellers, a 250mm diameter tunnel and a thrust rating up to 160/352 (kg/lbs).
This model integrates all the unique features of the Max Power electric tunnel thrusters range, ensuring a long and maintenance free lifespan.
* Thrusters are designed to run at 10.75V on 12V units and 22V on 24V units. Higher voltages will result in higher thrust ratings, higher power consumption, and a reduced duty cycle.
* Performance data is given for a thruster installed at an immersion depth of one tunnel’s diameter, in a tunnel no longer than twice the tunnel’s diameter, and this within a variation of + / - 6%. Longer tunnels will result in lower thrust ratings and higher power consumption.
