bow thruster / for boats / electric / tunnel type
CT 45

Add to MyNauticExpo favorites
Compare this product
bow thruster / for boats / electric / tunnel type bow thruster / for boats / electric / tunnel type - CT 45
{{requestButtons}}

Characteristics

  • Type:

    bow

  • Application domain:

    for boats

  • Power source:

    electric

  • Other characteristics:

    tunnel type, twin-prop, compact

  • Thrust:

    38.3 daN

  • Power:

    3.2 kW (4.4 hp)

Description

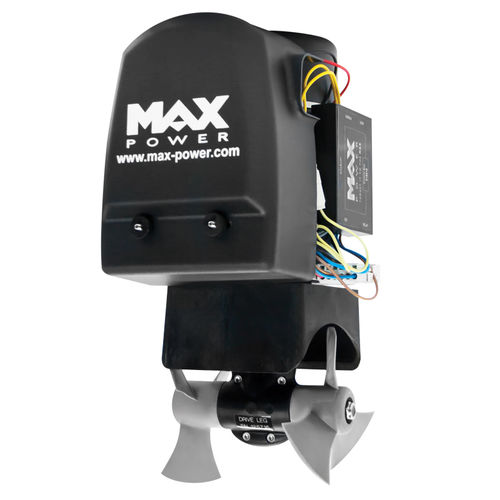

The CT45 is ideal for motor boats and deep footed sailing yachts ranging from 19’-36'. Manufactured using composite materials, the CT45 has a 125mm diameter tunnel.

As small and compact as the CT35, the CT45 benefits from an increased thrust rating up to 40/88 (kg/lbs) thanks to its twin propellers.

Easy to install and maintenance free, this model integrates all the unique features common to Max Power’s electric tunnel thrusters.

* Thrusters are designed to run at 10.75V on 12V units and 22V on 24V units. Higher voltages will result in higher thrust ratings, higher power consumption, and a reduced duty cycle.
* Performance data is given for a thruster installed at an immersion depth of one tunnel’s diameter, in a tunnel no longer than twice the tunnel’s diameter, and this within a variation of + / - 6%. Longer tunnels will result in lower thrust ratings and higher power consumption.
