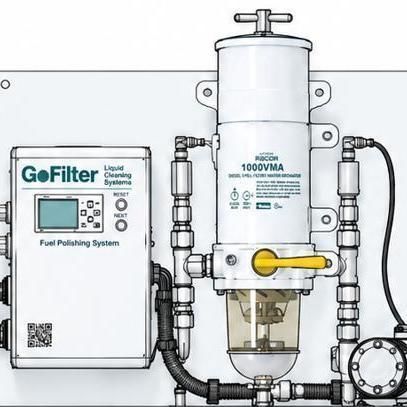

Diesel fuel polishing system GOF 1800

for shipsautomatic

Description
GOF 1800 Parker Racor Turbine — fuel polishing system for diesel. Delivers cleaner fuel, stable engine performance and greater operational reliability for vessels.

Short description
Flow rate: up to 600 L/h – 160 GPH (dependent on fuel line diameter)
Power supply: 6 variants available
Baseplate: powder-coated aluminium
Dimensions (main unit incl. mounted components): W 510 mm × H 415 mm × D 205 mm (height with vacuum gauge) / W 510 mm × H 355 mm × D 205 mm (without vacuum gauge)
Weight: 7.8 kg

Highlights and benefits

• High-performance cleaning up to 600 L/h (160 GPH) — suitable for tank capacities up to 2,000 L (530 gal)
• Water separation >98% and filter fineness 2 µm — effectively removes water, bacteria and particles
• Automated control with digital timer for weekly programs or post-refuelling start
• Intelligent monitoring of filter contamination and system tightness — automatic shutdown and alert on fault
• User-friendly external touch display, mountable in the wheelhouse or at another location
• Manage up to three tanks with a single system
• Easy retrofit integration into existing fuel supply and return lines

How it works
The system pairs high-performance Marco s.p.a. fuel pumps with patented Parker Racor Turbine filters. Fuel circulation inside the tank creates controlled turbulence so water and contaminants bind and are removed more effectively than engine-only filtration. The result is a consistently clean tank, reliable fuel supply and protection against costly engine damage.

Installation and operation
Installation is straightforward into existing fuel lines. Electronically controlled 3-way valves create a separate cleaning circuit. Advanced programming monitors safety-critical functions and enables full control of the system. Control features include automatic shutdown and fault alerts.

Conclusion
The GOF 1800 Turbine maintains long-term diesel cleanliness, prevents contamination and significantly reduces engine-failure risk. Improved reliability, lower maintenance costs and extended engine life.

Additional notes
Important: Supplied as a complete system.

Additional information (Product attributes)
Weight: 7.8 kg
Dimensions: 510 × 205 × 415 mm
Fuel: Diesel
Tank capacity: up to 2,000 L (530 gallons)
Category: GoF Liquid Cleaning Systems

Technical specifications

• Flow rate: up to 600 L/h (160 GPH)
• Suitable tank sizes: up to 2,000 L (530 gallons)
• Water separation: >98%
• Filter fineness: 2 µm
• Power supply: 6 variants available (including DC 12V/24V battery options and AC 110V/230V shipboard options)
• Baseplate: powder-coated aluminium
• Dimensions (main unit incl. mounted components): W 510 mm × H 415 mm × D 205 mm (with vacuum gauge) / W 510 mm × H 355 mm × D 205 mm (without vacuum gauge)
• Weight: 7.8 kg
• Pumps: Marco s.p.a. fuel pumps (integrated)
• Filter technology: Parker Racor Turbine filters (patented)
• Control: digital timer for weekly programs or post-refuel start; automated monitoring of filter contamination and tightness with automatic shutdown and alerts
• Operation/display: external touch display, installable in the wheelhouse or elsewhere
• Functions: manage up to three tanks with one system; electronic 3-way valves for separate cleaning circuit
• Options/connections: optional analog vacuum gauge; selectable hose inner diameters (8 mm / 10 mm / 13 mm / 16 mm)
• SKU: GOF1800D-TUR-1-1
