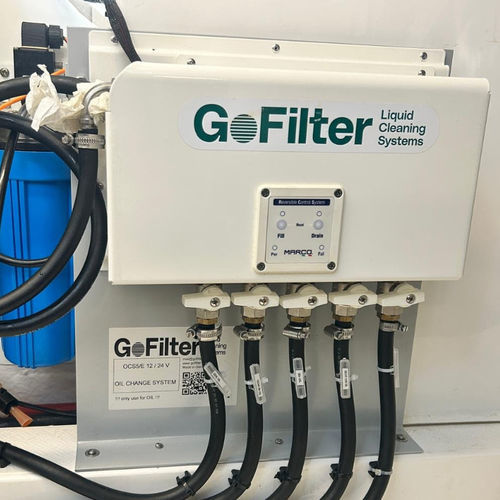

Ship oil transfer system OCS5/E

for boat

Product description
An electronic, compact oil change system for permanent installation on board. The system is used to drain and fill oil from all consumers on board such as generators, engines, gearboxes and gangways. The automatic speed regulation of the engine adjusts rpm depending on oil viscosity and temperature; the engine speed is increased during suction. The system switches off automatically after the oil has been completely drained, in the event of a short circuit and after 30 minutes of operation. With OCS, routine oil changes on board can be simplified and performed in a clean, controlled manner.

Technical data

• Voltage: 12/24 V
• Current consumption: 4/2 A
• Fuse: 10 A
• Flow rate: max. 10 l/min
• Self-priming: 1.5 m
• Pressure: 2 bar
• Openings: 1/2" (BSP)
• Motor power: 120 W
• Weight: 6.5 kg
• Dimensions: W 370 mm x H 279 mm x D 124 mm

Additional information
Valves: 5

Characteristics / technical specifications

• Voltage: 12/24 V
• Current consumption: 4/2 A
• Fuse: 10 A
• Flow rate: max. 10 l/min
• Self-priming: 1.5 m
• Pressure: 2 bar
• Openings: 1/2" (BSP)
• Motor power: 120 W
• Weight: 6.5 kg
• Dimensions: W 370 mm x H 279 mm x D 124 mm
• Valves: 5
