Ship oil transfer system OCS3/E

for boat

Description

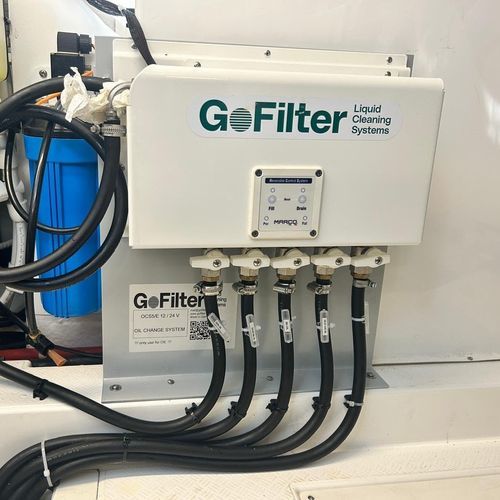

A compact electronic oil change system for permanent installation on board your vessel. The system is designed to drain and refill oil from onboard consumers such as generators, engines, gearboxes and gangways. The automatic engine speed regulation adjusts speed according to oil viscosity and temperature. Engine speed increases during suction to improve pumping performance. The system stops automatically after complete drainage, in case of a short circuit, or after 30 minutes of continuous operation. With OCS, routine oil changes are simplified and can be carried out more cleanly and with less effort.

Technical data

• Voltage: 12/24 V
• Current consumption: 4/2 A
• Fuse: 10 A
• Flow rate: max. 10 l/min
• Self-priming: 1.5 m
• Pressure: 2 bar
• Openings: 1/2" (BSP)
• Motor power: 120 W
• Weight: 4.4 kg
• Dimensions: W 215 mm × H 264 mm × D 114 mm

Features / Technical specifications

• Designed for permanent installation on board vessels
• Suitable for draining and refilling oil for generators, engines, gearboxes and gangways
• Automatic engine speed regulation based on oil viscosity and temperature
• Increased engine speed during suction to enhance pump performance
• Automatic shut-off after complete drainage, in case of short circuit, or after 30 minutes of operation
• Maximum flow rate 10 l/min; self-priming up to 1.5 m; operating pressure up to 2 bar
• Connections: 1/2" BSP; motor power 120 W; weight 4.4 kg; dimensions W215 × H264 × D114 mm
