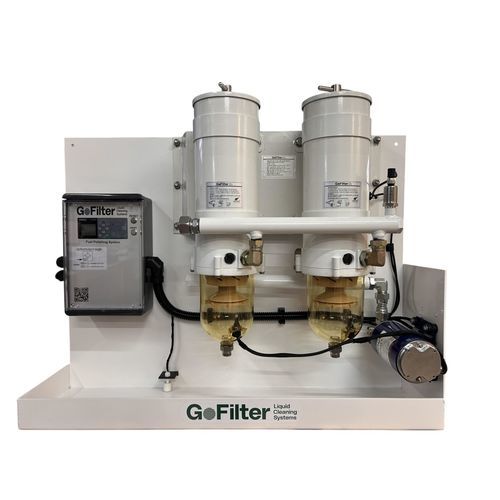

Diesel fuel polishing system GOF 3000

automatic

Short description
Filter capacity: max. 1,080 l/h – 285 GPH (dependent on fuel line diameter). Power supply: 6 variants available. Baseplate design: powder-coated aluminium. Dimensions (main system incl. mounted components): W 750 mm x H 650 mm x D 200 mm. Weight: 30 kg.

Function
The GOF 3000 Trubine provides a maximum filtration capacity of 1,080 l/h (285 GPH), depending on the fuel line cross-section. It is suitable for tank sizes up to 6,000 litres (1,585 gallons); larger tanks can be effectively cleaned with extended operating time.
The system achieves a very high separation efficiency for water and contaminants. The integrated water separator reaches water separation > 99 %, while the filter with a 2 µm rating removes bacteria and contaminants in the fuel by more than 99 %.
A digital timer allows programming of a weekly schedule or automatic start of the cleaning cycle immediately after refuelling. If excessive vacuum occurs in the system (e.g. due to clogged filter elements), if the water separator is full, or if leaks are detected (float switch in the collection bowl), the system shuts down automatically with an alarm. Status is shown on an external display that can be installed at the operator station or any other location.
The combination of high-quality components from Marco s.p.a. fuel pumps and the 2 µm filter elements causes targeted agitation of the fuel in the tank, improving uptake and removal of water and particulate contamination compared with normal engine operation.

Installation
The fuel cleaning system is easy to retrofit. The cleaning cycle is controlled by electronically monitored valves, allowing several tanks to be cleaned with a single system. The control software monitors all safety-relevant functions and enables convenient operation and monitoring. A complete system is supplied. A separate fuel connection with rise and fall pipe to the tanks is required!

Additional information (Product features)
Dimensions: 75 × 20 × 65 cm
Category: GoF Liquid Cleaning Systems
Fuel: Diesel
Tank size (attribute): up to 8,000L (2113 gallons)

Important note
A complete system is supplied. A separate fuel connection with rise and fall pipe to the tanks is required!

Technical specifications

• Model designation: GOF 3000 Trubine
• Filter capacity: max. 1,080 l/h (285 GPH) (dependent on fuel line cross-section)
• Water separation: > 99 %
• Filter rating: 2 µm (removes bacteria and contamination > 99 %)
• Suitable for tank sizes: up to 6,000 litres (1,585 gallons) (description) / Attribute: up to 8,000L (2113 gallons)
• Power supply: 6 variants available (including options for 12V / 24V and AC depending on configuration)
• Baseplate design: powder-coated aluminium
• Dimensions (main system incl. mounted components): W 750 mm x H 650 mm x D 200 mm (corresponds to 75 × 20 × 65 cm in attribute)
• Weight: 30 kg
• Integrated components: Marco s.p.a. fuel pumps, 2 µm filter elements
• Safety functions: vacuum monitoring, float switch in collection container, automatic shut-off with alarm
• Control: digital timer with weekly program; external display for status
• Multi-tank capability: several tanks with one system (electronically monitored valves)
• Scope of delivery: complete system (separate fuel connection to tanks required)
