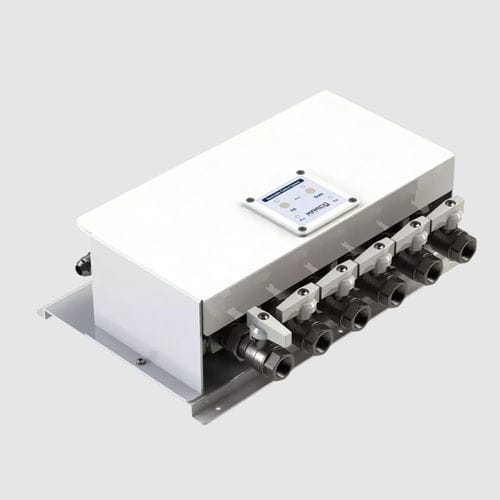

Boat oil transfer system OCS6/E

for ship

Product description
An electronic, compact oil change system for permanent installation on board. Designed for draining and filling oil from all on-board consumers such as generators, engines, gearboxes and gangways. The system features automatic engine speed regulation according to oil viscosity and temperature; engine speed is increased during suction. The unit stops automatically after complete drainage, in case of a short circuit and after 30 minutes of continuous operation. The OCS6/E simplifies regular oil changes on boats, enabling clean and low-effort operations.

Technical data

• Voltage: 12/24 V
• Current consumption: 7/3.5 A
• Fuse: 10 A
• Flow rate: 20 l/min
• Self-priming: 1.5 m
• Pressure: 2 bar
• Openings: 1/2" (BSP)
• Motor power: 180 W
• Weight: 8 kg
• Dimensions: W 370 mm x H 279 mm x D 124 mm

Characteristics / specifications

• Model: OCS6/E
• Brand: GoFilter
• Intended use: Drain and fill oil for generators, engines, gearboxes and gangways on board
• Automatic features: Speed regulation based on oil viscosity/temperature; automatic stop after complete drain, on short circuit and after 30 minutes
• Installation: Permanent installation on board
• Flow rate: 20 l/min
• Self-priming height: 1.5 m
• Operating pressure: 2 bar
• Electrical: 12/24 V, current consumption 7/3.5 A, fuse 10 A
• Motor: 180 W
• Weight: 8 kg
• Dimensions: W 370 mm x H 279 mm x D 124 mm
