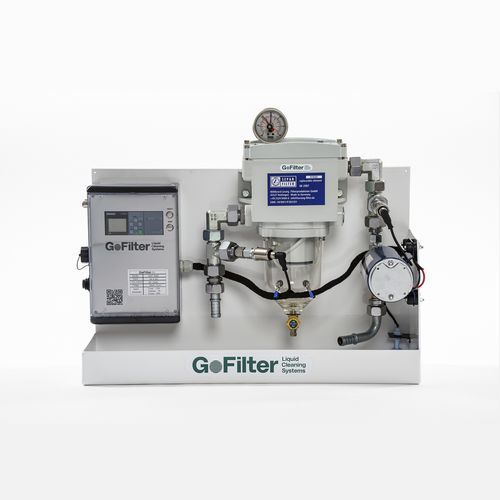

Diesel fuel filter GOF 3000

for shipsfor tanks

The GOF 3000 has a maximum filter capacity of 1080 l/h – 285 GPH (depending on the fuel line cross-section) and is recommended for a tank size of up to 4000 liters – 1057 gallons of diesel fuel. This device is characterized by an extremely high separation performance of water and dirt. Water separation efficiency > 99 %. The filter fineness of 10µm makes it possible to filter out more than 99% of bacteria and dirt in the fuel. Equipped with a digital timer, the filter process can be programmed with a weekly schedule or started by a timer directly after refueling. If the vacuum in the system is too high (contamination of the filter element), the filter bowl is full or there are leaks in the system (float switch in the drip tray), the system is switched off and an alarm is triggered. This is shown to the user on an external display, which can be installed on the driver’s platform or anywhere else. Through the interaction of the components of “Marco s.p.a.” fuel pumps and “Separs” patented fuel filters, the fuel is whirled up in the tank. As a result, dirt particles and water are better absorbed and filtered out – something that normal engine operation cannot achieve, as the fuel is only filtered in the supply line during engine operation. Installation Our fuel cleaning system is easy to retrofit. It is integrated into the existing fuel line system between the engine and tank (supply and return line). The cleaning cycle is controlled by our electronically monitored 3-way valves to create a separate circuit between the tank and the system. Our sophisticated programming monitors safety-relevant functions and allows the user to control and monitor the system.
