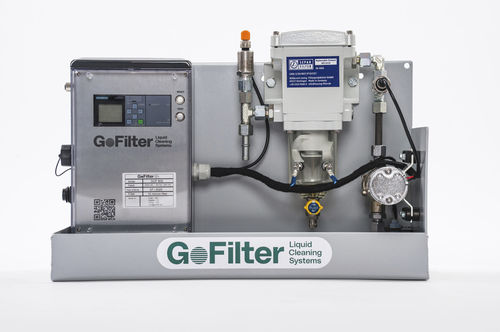

Fuel filter GOF 800H

diesel fuelfor shipsfor tanks

The GOF 800H has a maximum filter capacity of 300 l/h – 80 GPH (depending on the fuel line cross-section) and is recommended for a tank size of up to 1000 liters – 265 gallons of diesel fuel. Separ filters equipped with an electric diesel heater prevent starting problems at cold temperatures around or below 0 °C and remove the water and dirt particles contained in the fuel. This device is characterized by an extremely high separation performance of water and dirt. Water separation efficiency > 98 %. The filter fineness of 10µm makes it possible to filter out more than 98% of bacteria and dirt in the fuel. Equipped with a digital timer, the filter process can be programmed with a weekly schedule or started by a timer directly after refueling. If the vacuum in the system is too high (contamination of the filter element), the filter bowl is full or there are leaks in the system (float switch in the drip tray), the system is switched off and an alarm is triggered. This is shown to the user on an external display, which can be installed on the driver’s platform or anywhere else. Through the interaction of the components of “Marco s.p.a.” fuel pumps and “Separs” patented fuel filters, the fuel is whirled up in the tank. As a result, dirt particles and water are better absorbed and filtered out – something that normal engine operation cannot achieve Installation Our fuel cleaning system is easy to retrofit. It is integrated into the existing fuel line system between the engine and tank (supply and return line). The cleaning cycle is controlled by our electronically monitored 3-way valves to create a separate circuit between the tank and the system.
