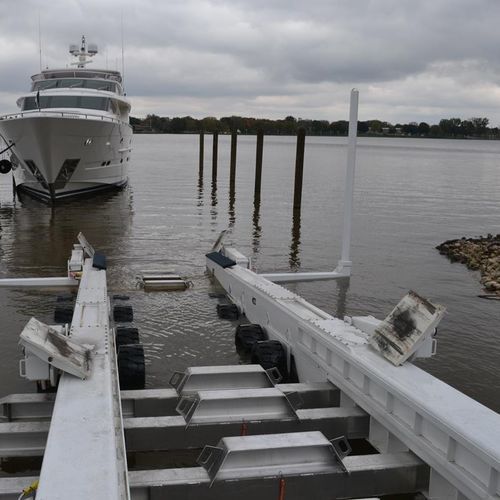

Road trailer SP-80
for boatshydraulicself-propelled

road trailer
road trailer
road trailer
Add to favorites
Compare this product


Characteristics

Use
road
Applications
for boats
Other characteristics
hydraulic, self-propelled
Payload

160,000 lb (72,574.78 kg)

Lifting height

12 in, 47 in

Overall length

80'00" , 82'00" (24.4 m)

Overall width

66 in, 96 in

Description

16" x 16" x .500" HSS steel tube frame - bridged construction Integral hydraulic front-end power unit Power: 120 HP CAT Diesel 60 degree steering Full hydrostatic drive with dynamic braking (multi wet-disk parking brake) Variable speed to 5 MPH Single lever joy-stick control Full engine instrumentation Pilot operated safety lock-valves on main frame, tongue, and hydraulic arms Telescopic hydraulically operated rear cross-bar Eight - 8" x 8" aluminum keel support bars Six - telescopic (extendable) hydraulic arms (Forward arms pivot inward to accommodate narrow beam boats) O-ring boss and JIC hydraulic fittings Zinc coated steel hose ends and fittings High strength hydraulic cylinder shafts Stainless steel hardware (nuts/bolts/pins) Walking beam suspension Tires: Front - 4 - 315/80R 22.5 tires / Rear - 28" premium wide-trac solid Titan tires Complete sandblast to white metal, 1 coat zinc primer, 1 coat epoxy high build primer Polyurethane paint - 2 coats of Conolift Red PPG commercial performance paint 3 year warranty on frame, 2 years on hydraulic components with 90 days limited warranty on running gear Optional Equipment Custom colour choice - 189 colors to choose from Wireless remote control Stainless steel hose ends & fittings package Hot dip galvanized frame and hubs Rear wheel drive assist Conolift reserves the right to change specifications or substitute components as required in an effort to supply a better product in an ever changing marketplace.

Catalogs

No catalogs are available for this product.

See all of Conolift‘s catalogs
