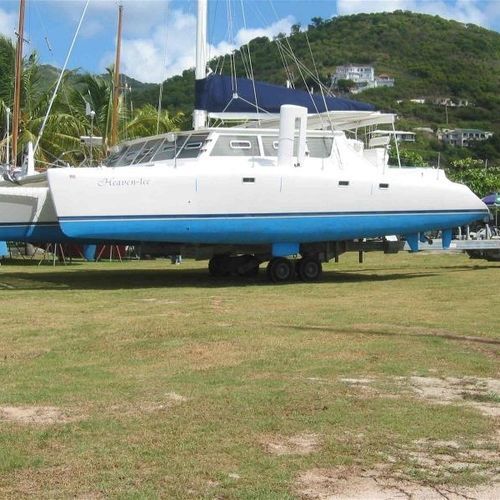

Handling trailer SP-40
for shipyardhydraulicself-propelled

handling trailer
handling trailer
handling trailer
handling trailer
handling trailer
handling trailer
handling trailer
Add to favorites
Compare this product


Characteristics

Use
handling
Applications
for shipyard
Other characteristics
hydraulic, self-propelled, bunk
Payload

80,000 lb (36,287.39 kg)

Lifting height

62 in

Overall length

60'00" , 62'00" (18.3 m)

Overall width

84 in, 114 in

Description

12" x 12" x .500" HSS steel tube frame Integral hydraulic front-end power unit Power: 85 HP CAT Diesel 90 degree steering Full hydrostatic drive with dynamic braking (multi wet-disk parking brake) Variable speed to 6 MPH Single lever joy-stick control Full engine instrumentation Pilot operated safety lock-valves on main frame lift Hydraulically operated fore and aft keel support strap Rear 4-pad equalizing rocker system 12 adjustable powerboat pads; 3 telescopic cradle bars with fixtures O-ring boss and JIC hydraulic fittings Zinc coated steel hose ends and fittings High strength hydraulic cylinder shafts Stainless steel hardware (nuts/bolts/pins) Walking beam suspension Tires: Front - 315/80-22.5" 20 ply drive tires / Rear - 28" premium wide-trac solid Titan tires Complete sandblast to white metal, 1 coat zinc primer, 1 coat epoxy high build primer Polyurethane paint - 2 coats of Conolift Red PPG commercial performance paint 3 year warranty on frame, 2 years on hydraulic components with 90 days limited warranty on running gear Optional Equipment Custom colour choice - 189 colors to choose from Wireless remote control "L" cradle arms for more efficient cradle moving - Set of 6 Stainless steel hose ends & fittings package Hot dip galvanized frame and hubs Hydraulic arm package for handling non-cradled sail boats - 4 arm or 6 arm Rear wheel drive assist Conolift reserves the right to change specifications or substitute components as required in an effort to supply a better product in an ever changing marketplace.
