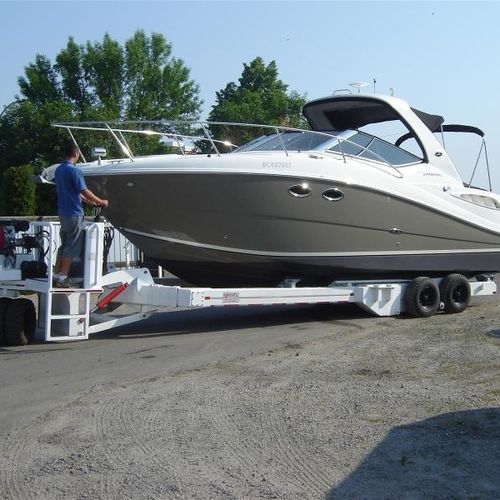

Handling trailer SP-10
for shipyardshydraulicself-propelled

handling trailer
handling trailer
handling trailer
handling trailer
handling trailer
Add to favorites
Compare this product


Characteristics

Use
handling
Applications
for shipyards
Other characteristics
hydraulic, self-propelled
Payload

20,000 lb
(9,071.85 kg)

Overall length

37'00" , 38'00"
(11.3 m, 11.6 m)

Overall width

68 in, 98 in

Lifting height

54 in

Description

10" x 10" x .250" HSS steel tube frame Integral hydraulic front-end power unit Power: 24 HP Honda 90 degree steering Full hydrostatic drive with dynamic braking (multi wet-disk parking brake) Variable speed to 7 MPH Single lever joy-stick control Full engine instrumentation Pilot operated safety lock-valves on main frame lift Hydraulically operated rear keel support strap 4 adjustable powerboat pads; 2 telescopic cradle bars with fixtures O-ring boss and JIC hydraulic fittings Zinc coated steel hose ends and fittings High strength hydraulic cylinder shafts Stainless steel hardware (nuts/bolts/pins) Walking beam suspension Tires: Front - 10 - 16.5 Wearmaster / Rear - 9.00 x 14.5 bias ply Complete sandblast to white metal, 1 coat zinc primer, 1 coat epoxy high build primer Polyurethane paint - 2 coats of Conolift Red PPG commercial performance paint 3 year warranty on frame, 2 years on hydraulic components with 90 days limited warranty on running gear Optional Equipment Custom colour choice - 189 colors to choose from Wireless remote control "L" cradle arms for more efficient cradle moving - Set of 4 Stainless steel hose ends & fittings package Hot dip galvanized frame and hubs Hydraulic 4-arm package for handling non-cradled sail boats Conolift reserves the right to change specifications or substitute components as required in an effort to supply a better product in an ever changing marketplace.

Catalogs

SP-10
SP-10
1 Pages
