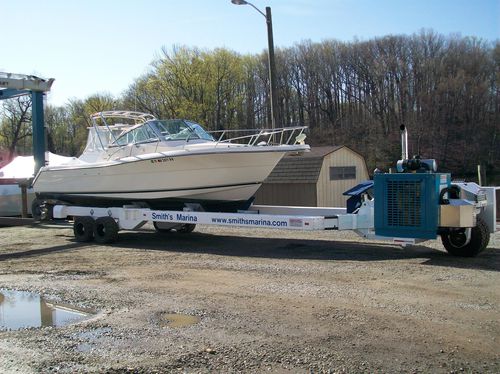

Handling trailer SP-15
for shipyardself-propelled

handling trailer
handling trailer
handling trailer
handling trailer
handling trailer
handling trailer
handling trailer
Add to favorites
Compare this product


Characteristics

Use
handling
Applications
for shipyard
Other characteristics
self-propelled
Payload

30,000 lb (13,607.77 kg)

Lifting height

55 in

Overall length

42'00" , 44'00" (12.8 m)

Overall width

68 in, 98 in

Description

10" x 10" x .375" HSS steel tube frame Integral hydraulic front-end power unit Power: 85 HP CAT Diesel 90 degree steering Full hydrostatic drive with dynamic braking (multi wet-disk parking brake) Variable speed to 9 MPH Single lever joy-stick control Full engine instrumentation Pilot operated safety lock-valves on main frame lift Hydraulically operated rear keel support strap 8 adjustable powerboat pads; 3 telescopic cradle bars with fixtures O-ring boss and JIC hydraulic fittings Zinc coated steel hose ends and fittings High strength hydraulic cylinder shafts Stainless steel hardware (nuts/bolts/pins) Walking beam suspension Tires: Front - 31" diameter lug-style drive tires / Rear - 28" premium wide-trac solid Titan tires Complete sandblast to white metal, 1 coat zinc primer, 1 coat epoxy high build primer Polyurethane paint - 2 coats of Conolift Red PPG commercial performance paint 3 year warranty on frame, 2 years on hydraulic components with 90 days limited warranty on running gear Optional Equipment Custom colour choice - 189 colors to choose from Wireless remote control "L" cradle arms for more efficient cradle moving - Set of 4 or 6 Stainless steel hose ends & fittings package Hot dip galvanized frame and hubs Hydraulic 4-arm package for handling non-cradled sail boats Conolift reserves the right to change specifications or substitute components as required in an effort to supply a better product in an ever changing marketplace.
