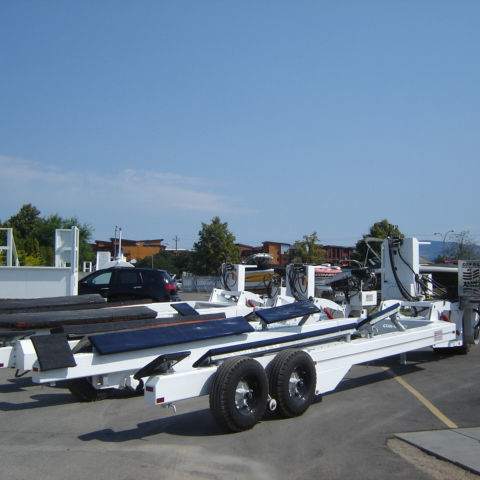

Handling trailer SP-4
for shipyardhydraulicself-propelled

handling trailer
handling trailer
handling trailer
Add to favorites
Compare this product


for shipyard
Other characteristics
hydraulic, self-propelled

8,000 lb (3,628.74 kg)

Lifting height

40 in

Overall length

28'00" , 30'00" (8.5 m)

Overall width

64 in


8" x 8" x .250" HSS steel tube frame Integral hydraulic front-end power unit Power: 24 HP Honda 90 degree steering Full hydrostatic drive with dynamic breaking (multi-wet-disk parking brake) Variable speed to 7 MPH Single lever joy-stick control Full engine instrumentation Pilot operated safety lock-valves on main frame lift Hydraulically operated rear keel support strap 4 adjustable powerboat pads; 2 telescopic cradle bars with fixtures O-ring boss and JIC hydraulic fittings Zinc coated steel hose ends and fittings High strength hydraulic cylinder shafts Stainless steel hardware (nuts/bolts/pins) Walking beam suspension Rear Tires: 9.00 x 14.5 bias ply Complete sandblast to white metal, 1 coat zinc primer, 1 coat epoxy high build primer Polyurethane paint - 2 coats of Conolift Red PPG commercial performance paint 3 year warranty on frame, 2 years on hydraulic components with 90 days limited warranty on running gear Optional Equipment Custom colour choice - 189 colors to choose from Wireless remote control Stainless steel hose ends & fittings package Hot dip galvanized frame and hubs Hydraulic 4-arm package for handling non-cradled sail boats Conolift reserves the right to change specifications or substitute components as required in an effort to supply a better product in an ever changing marketplace.


1 Pages
