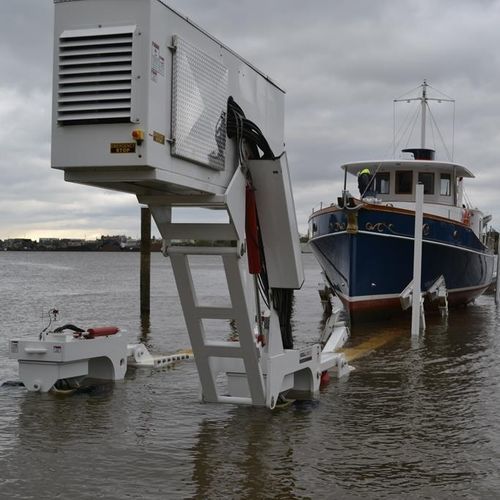

heavy-duty handling trailer / launching / for boats / self-propelled



  • Use:

    for heavy-duty handling, launching

  • Applications:

    for boats

  • Other characteristics:

    self-propelled, hydraulic, remotely controlled

  • Payload:

    Max.: 100 us ton (90.72 t)

    Min.: 5 us ton (4.54 t)


standard Capacities & Features

Capacity (size)
Powerboats to 90' LOA
Sailboats to 92' LOA
Capacity (weight)
200,000 lbs
16" x 16" x .500" HSS steel tube frame - bridged construction
Integral hydraulic front-end power unit
Power: 120 HP CAT Diesel
60 degree steering
Full hydrostatic drive with dynamic braking (multi wet-disk parking brake)
Variable speed to 5 MPH
Single lever joy-stick control
Full engine instrumentation
Hydraulic expanding width frame (expands from 65" to 95" inside the inner wheels)
Hydraulic lift - wheel and tongue lift with keel bar heights from 12 1/2" to 42"
Pilot operated safety lock-valves on main frame, tongue, and hydraulic arms
Telescopic hydraulically operated rear cross-bar
Ten - 8" x 8" aluminum keel support bars
Six - telescopic (extendable) hydraulic arms (Forward arms pivot inward to accommodate narrow beam boats)
O-ring boss and JIC hydraulic fittings
Zinc coated steel hose ends and fittings
High strength hydraulic cylinder shafts
Stainless steel hardware (nuts/bolts/pins)
Walking beam suspension
Tires: Front - 4 - 315/80R 22.5 tires / Rear - 28" premium wide-trac solid Titan tires
Complete sandblast to white metal, 1 coat zinc primer, 1 coat epoxy high build primer
Polyurethane paint - 2 coats of Conolift Red PPG commercial performance paint
3 year warranty on frame, 2 years on hydraulic components with 90 days limited warranty on running gear
Optional Equipment

Custom colour choice - 189 colors to choose from
Wireless remote control
Stainless steel hose ends & fittings package
Hot dip galvanized frame and hubs
Rear wheel drive assist
