Boat pump B-CE (230M-400T)
transfercirculationcooling

boat pump
boat pump
Add to favorites
Compare this product


Characteristics

Application domain
for boats
Applications
transfer, circulation, cooling, air conditioning
Fluid
seawater
Technology
centrifugal
Operation
electric
Flow rate

Min.: 40 l/min (10.57 us gal/min)

Max.: 250 l/min (66.04 us gal/min)

Description

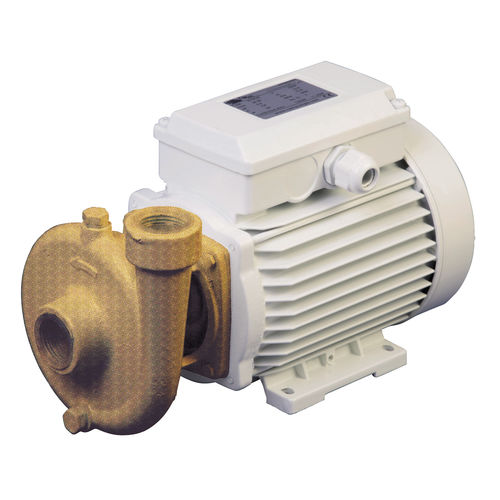

DESCRIPTION AND USE Centrifugal electric pumps made in BRONZE widely used in the nautical sector to transfer and/or deliver fresh water and sea water to all the plants where a large flow rate is needed such as: air conditioning, cooling and circulation etc. CONSTRUCTION FEATURES Pump body: BRONZE Motor support: BRONZE Impeller: BRONZE Shaft: AISI 316 Stainless steel Mechanical seal: CERAMICS – GRAPHITE - NBR (special corrosion-proof) MOTOR Direct Current: Permanent magnet electric motor 12/24V, Protection IP23, Insulation Class F, Continuous Duty (S1). Alternate Current: Induction electric motor, 230V single-phase (M) / 230÷400V / 400÷690V three-phase (T), 50Hz, Protection IP55, Insulation Class F, Continuous Duty (S1). SCOPE Liquid free of solid impurities Temperature range of the liquid: from + 0 to + 90 °C. Max. suction depth: 7 m Static pressure inside the pump body: 6 bar max. ACCESSORIES ON REQUEST Threaded counter flanges for B-CN series
