DESCRIPTION AND USE

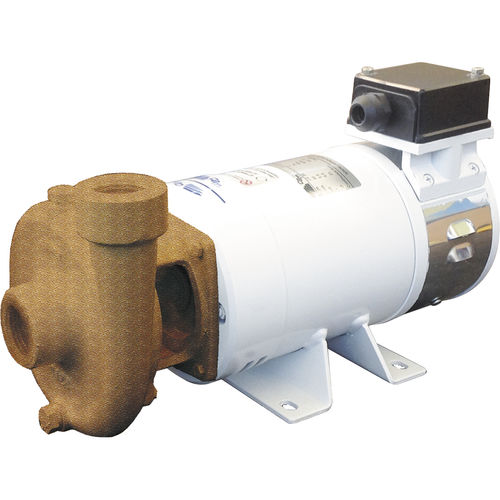

Centrifugal electric pumps made in BRONZE widely used in the nautical sector to transfer and/or deliver fresh water and sea water to all the plants where a large flow rate is needed such as: air conditioning, cooling and circulation etc.
Pump body: BRONZE
Motor support: BRONZE
Shaft: AISI 316 Stainless steel
Mechanical seal: CERAMICS – GRAPHITE - NBR (special corrosion-proof)
Permanent magnet electric motor 12/24V, Protection IP23, Insulation Class F, Continuous Duty (S1).
Induction electric motor, 230V single-phase (M) / 230÷400V / 400÷690V three-phase (T), 50Hz, Protection IP55, Insulation Class F, Continuous Duty (S1).
Liquid free of solid impurities
Temperature range of the liquid: from + 0 to + 90 °C.
Max. suction depth: 7 m
Static pressure inside the pump body: 6 bar max.
ACCESSORIES ON REQUEST
Threaded counter flanges for B-CN series
