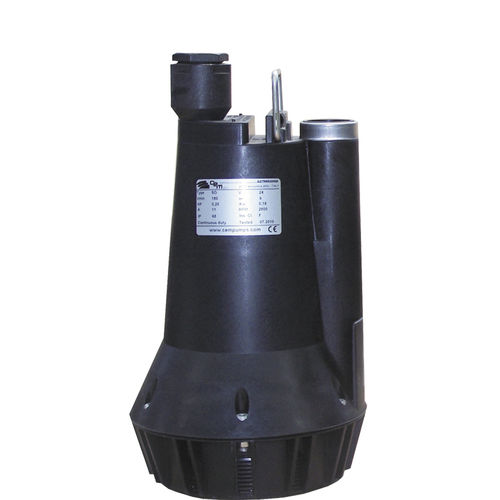

Boat pump SO
bilgeseawaterfreshwater

boat pump
boat pump
Add to favorites
Compare this product


Characteristics

Application domain
for boats
Applications
bilge
Fluid
seawater, freshwater
Technology
impeller, immersed
Operation
electric
Other characteristics
submersible
Flow rate

180 l/min (47.55 us gal/min)

Description

DESCRIPTION AND USE Submersible electric pumps made in BRONZE ( BRA series) and made in polypropylene fibreglass (SO and SO-V series) widely used in the nautical sector to empty bilges and to pumping fresh and sea water. The pump series BRA and SO-V are equipped with Vortex impeller: they are also indicated for black water and dirty liquids with small solid bodies in suspension. Note: the pumps model BRA are supplied of series with 10 m. of cable / the pumps models SO and SO-V are supplied of series with 5 m. of cable. CONSTRUCTION FEATURES BRA series Pump body: BRONZE Impeller: BRONZE Shaft: AISI 316 Stainless steel Mechanical seals: No. 02 made in SILICON CARBIDE (special corrosion-proof) SO / SO-V series Pump body: POLYPROPYLENE FIBREGLASS Impeller: POLYMER (ABS) Shaft : AISI 316 Stainless steel Mechanical seals: No. 01 GRAPHITE-NBR+ No. 01 LIP SEAL (special corrosion-proof) MOTOR Direct Current: Wound field electric motor 12/24V, Protection IP68, Insulation Class F, Continuous Duty (S1). Alternate Current: Induction electric motor, 230V single-phase (M) / 230-400V three-phase (T), 50Hz, Protection IP68, Insulation Class F, Continuous Duty (S1).

Catalogs

No catalogs are available for this product.

See all of CEM S.r.l.‘s catalogs
