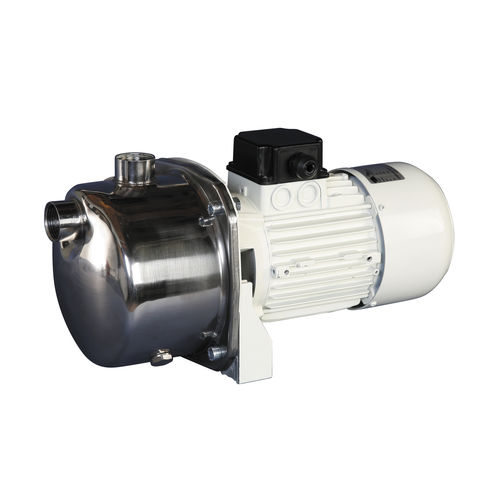

Boat pump J-INOX
transferfire fighting systemshower

boat pump
boat pump
Add to favorites
Compare this product


Characteristics

Application domain
for boats
Applications
transfer, fire fighting system, shower, air conditioning
Fluid
water
Technology
centrifugal
Operation
electric
Voltage
24 V, 12 V, 400 V, 230 V
Other characteristics
self-priming
Flow rate

50 l/min, 58 l/min
(13.21 us gal/min, 15.32 us gal/min)

Power consumption

Min.: 4 A

Max.: 40 A

Pressure

6 bar
(87 psi)

Weight

10 kg
(22 lb)

Description

Self-priming centrifugal electric pumps Jet type with closed impeller, featuring a high suction capacity, widely used to deliver pressurized water to on-board appliances (such as showers, kitchens ,washbasins, toilets, etc.), for air-conditioning units, fire–fighting, washing of decks and chains. Automatic operation is achieved by equipping the pumps with small or medium-sized surge tanks. The pumps series J-mini, J-INOX e MG-INOX and are suitable for fresh water, the pumps series JBR are suitable for both fresh and sea water. CONSTRUCTION FEATURES J-mini / J-INOX / MG-INOX Series Pump body: AISI 304 STAINLESS STEEL Shaft : AISI 316 (d.c.) - AISI 420 (a.c.) STAINLESS STEEL Diffuser and Venturi tube: NORYL (Technopolymer) Impeller/s: NORYL (Technopolymer). Mechanical seal: CERAMICS – GRAPHITE - NBR (special corrosion-proof). JBR series Pump body: BRONZE Motor support: BRONZE Shaft : AISI 316 STAINLESS STEEL Diffuser and Venturi Tube: POLYCARBONATE Impeller: SPECIAL BRASS ALLOY Mechanical seal: CERAMICS – GRAPHITE - NBR (special corrosion-proof). MOTOR Direct Current: Wound field and permanent magnet electric motor 12/24V, Protection IP23, Insulation Class F, Continuous Duty (S1). Alternate Current: Induction electric motor, 230V single-phase (M) / 230-400V three-phase (T), 50Hz, Protection IP44-54, Insulation Class F, Continuous Duty (S1).
