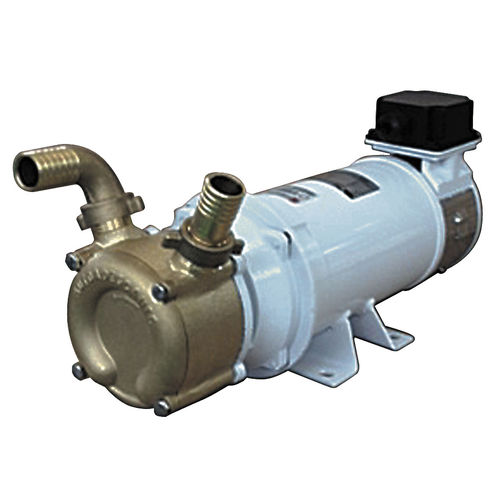

Boat pump 020 MP

transferbilgefire fighting system

DESCRIPTION AND USE Self-priming electric pumps made in bronze with side liquid ring widely used in the nautical sector to empty bilges, fire-fighting and transfer liquids such as: fresh water, sea water, diesel-oil etc. CONSTRUCTION FEATURES Pump body: BRONZE Impeller: BRONZE Pipe fittings: BRONZE Shaft: AISI 316 Stainless steel Mechanical seal: ceramics-graphite-NBR (special corrosion proof) MOTOR Direct Current: Wound field electric motor 12/24V, Protection IP23, Insulation Class F, Continuous Duty (S1). MP series: permanent magnet motor 12/24V d.c. for bi-directional operations, Protection IP 23÷44, Insulation Class F, Continuous Duty (S1). Alternate Current: Induction electric motor, 230V single-phase (M) / 230÷400V three-phase (T), 50Hz, Protection IP55, Insulation Class F, Continuous Duty (S1). SCOPE Liquid free of solid impurities Temperature range of the liquid: from +0 to +70 °C Max. suction depth: 6 m (4m for 020 and 020MP models) Static pressure inside the pump body: 6 bar max ACCESSORIES ON REQUEST Pump body with manual by-pass High temperature mechanical seal (max. 150°C) made in widia/viton/SIC
