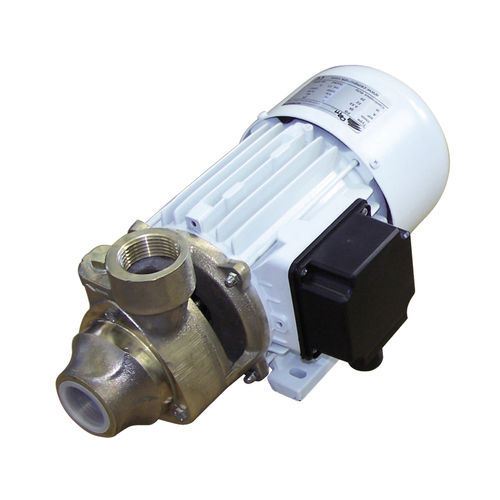

Boat pump PB
transfertoiletshower

boat pump
boat pump
Add to favorites
Compare this product


Characteristics

Application domain
for boats
Applications
transfer, toilet, shower
Fluid
seawater, freshwater
Technology
impeller
Operation
electric
Flow rate

36 l/min (9.51 us gal/min)

Description

DESCRIPTION AND USE Single-impeller peripheral electric pumps capable of developing high pressure as compared to limited flow rate. These electric pumps are widely used in the nautical sector where they are commonly used to deliver fresh water (PB-PCC) or sea water (PB), to wash decks and chains, or to deliver pressurised water to on-board appliances such as showers, washbasins, toilets, etc. Automatic operation is achieved by equipping the pumps with small or medium-sized surge tanks. Installing a non-return valve at the suction inlet is recommended. CONSTRUCTION FEATURES Electric pump Type PB Pump body: BRONZE. Motor support: BRONZE. Shaft: AISI 316 STAINLESS STEEL. Impeller: BRASS ALLOY Mechanical seet: CERAMICS-GRAPHITE-NBR (special corrosion-proof) Electric pump Type PCC Pump body: CAST IRON. Motor support: CAST IRON. Shaft: AISI 316 STAINLESS STEEL. Impeller: BRASS ALLOY Mechanical seal: CERAMICS-GRAPHITE-NBR (special corrosion-proof) MOTOR Direct Current: Wound field electric motor 12/24V, protection IP23 insulation class F, continuous duty (S1). Alternate Current: Electric motor, asynchronous 230V single-phase (M) / 230÷400V three-phase (T), 50Hz, protection IP44, insulation class F, continuous duty (S1). SCOPE Liquid free of solid impurities. Temperature range of the liquid: from +0 to +70°C. Max. suction depth: 6.m Static pressure inside the pump body: 6 bar max.
