video corpo

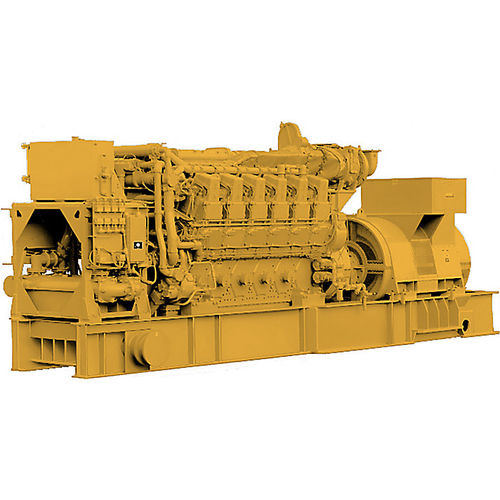

Ship generator set C280-12
dieselmedium-speed

ship generator set
ship generator set
Add to favorites
Compare this product


Characteristics

Application domain
for ships
Motor type
diesel
Options and accessories
medium-speed
Output power

Min.: 3,520 kW (4,785.9 hp)

Max.: 3,640 kW (4,949 hp)

Description

CAN J1939 data link Waterproof connectors, Maintenance-free, Backup ECU for redundant governing GENERATOR SET SPECIFICATIONS Minimum Rating - 3520 ekW (4400 kVA) Maximum Rating - 3640 ekW (4550 kVA) Frequency - 50 Hz or 60 Hz Speed - 1000 rpm (50 hz) or 900 rpm (60 hz) Emissions/Fuel Strategy - EPA Tier 2, IMO II ENGINE SPECIFICATIONS Aspiration - Turbocharged-Aftercooled Bore - 280 mm Stroke - 300 mm Displacement - 222 l Governor Type - Electronic Fuel System - EUI Compression Ratio 50 Hz - 13.1 Compression Ratio 60 Hz - 13:1 Engine Model - Vee 12, 4-Stroke-Cycle Diesel GENERATOR SET DIMENSIONS Length - 8040 mm Width - 1961 mm Height - 3937 mm Weight - Estimated - 11340 kg AIR INLET SYSTEM Aftercooler — fresh water, corrosion resistant coated (air side); air inlet shutoff; breather — crankcase, top-mounted; turbocharger — engine oil lubricated CONTROL SYSTEM Single Caterpillar® A3 electronic control unit (ECU) with electronic unit injector fuel system, rigid wiring harness (10 amp, 24 volt power required to drive ECUs) COOLING SYSTEM Engine coolant water drains EXHAUST SYSTEM Dry, gas tight, exhaust manifold FUEL SYSTEM Distillate fuel (requires viscosity ranging from 1.4 cSt to 20 cSt at 38° C), fuel transfer pump (mounted on left-hand side), duplex fuel filters, electronically controlled unit injectors

Catalogs
