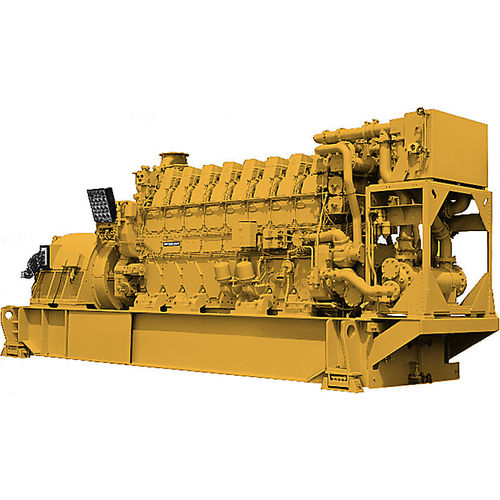

Ship generator set C280-8
dieselmedium-speed

ship generator set
ship generator set
Add to favorites
Compare this product


Characteristics

Application domain
for ships
Motor type
diesel
Options and accessories
medium-speed
Output power

Min.: 2,350 kW (3,195.1 hp)

Max.: 2,420 kW (3,290.3 hp)

Description

ADVANTAGES CAN J1939 data link Waterproof connectors, Maintenance-free, Backup ECU for redundant governing ELECTRONIC ADVANTAGES Load feedback, Programmable droop, Adjustable gain, Adjustable fuel/air ratio control, Histograms of engine operation, Cat Messenger display presents diagnostics and other engine parameters DATA ADVANTAGES THROUGH J1939 LINK Engine speed, Boost pressure, Throttle position, Fuel consumption rate, Inlet manifold temperature, Diagnostic codes and events, Configuration, Desired engine speed, Battery voltage, Engine load, Lifetime totals — engine hours, fuel burned, idle fuel, idle hours, Trip totals — average fuel rate, idle fuel, idle hours, engine hours, fuel burned, trip reset GENERATOR SET SPECIFICATIONS Minimum Rating - 2350 ekW (2938 kVA) Maximum Rating - 2420 ekW (3025 kVA) Frequency - 50 Hz or 60 Hz Speed - 1000 rpm (50 hz) or 900 rpm (60 hz) Emissions/Fuel Strategy - EPA Tier 2, IMO II ENGINE SPECIFICATIONS Aspiration - Turbocharged-Aftercooled Bore - 280 mm Stroke - 300 mm Displacement - 148 l Governor Type - Electronic Fuel System - EUI Compression Ratio 50 Hz - 13.1 Compression Ratio 60 Hz - 13:1 Engine Model - In-line 8, 4-Stroke-Cycle Diesel GENERATOR SET DIMENSIONS Length - 8040 mm Width - 1961 mm Height - 3937 mm Weight - Estimated - 11340 kg AIR INLET SYSTEM Aftercooler — fresh water, corrosion resistant coated (air side); air inlet shutoff; breather — crankcase, top-mounted; turbocharger — engine oil lubricated CONTROL SYSTEM Single Caterpillar® A3 electronic control unit (ECU) with electronic unit injector fuel system, rigid wiring harness (10 amp, 24 volt power required to drive ECUs) COOLING SYSTEM Engine coolant water drains
