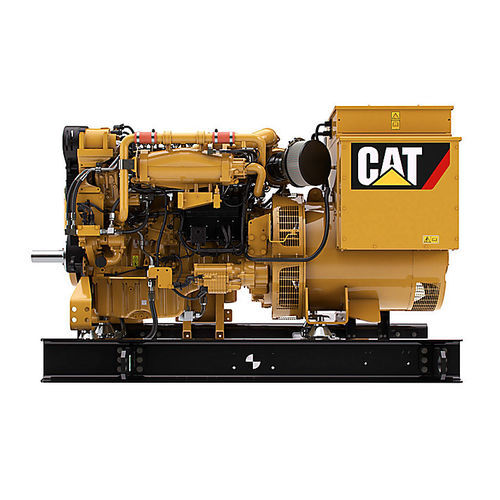

Yacht generator set C9.3
diesel

yacht generator set
yacht generator set
Add to favorites
Compare this product


Characteristics

Application domain
for yachts
Motor type
diesel
Output power

Max.: 300 kW (407.9 hp)

Min.: 185 kW (251.5 hp)

Description

C9.3 ACERT genset packages with heat exchanger or keel cooling are available with60 Hertz ratings of 250 ekW (313 kVA) and 300 ekW (375 kVA) and 50 Hz ratings of 200 ekW (250 kVA) and 250 ekW (313 kVA). Radiator cooled gen sets are with 60 Hz ratings of 224 ekW (280 kVA) and 274 ekW (343 kVA) and 50 Hz ratings of 185 ekW (231 kVA) and 235 ekW (294 kVA). The C9.3 propulsion, auxiliary, and generator set engines have a common rail fuel system for optimal combustion and lower emissions. Cooling system options for the propulsion and auxiliary engines include heat exchanger with sea water aftercooling, and keel with combined circuit or separate circuit aftercooling. The genset packages are available with heat exchanger, keel, or radiator cooling. These products are EPA Tier 3 and IMO II certified. In addition the propulsionengine ratings are EU Stage IIIA certified and auxiliary and gen sets are also CCNR Stage II certified. GENERATOR SET SPECIFICATIONS Minimum Rating - 185R ekW (231 kVA) at 50hz, 224R ekW (280 kVA) at 60hz Maximum Rating - 250R ekW (313 kVA) at 50hz, 300 ekW (375 kVA) at 60hz Frequency - 50 Hertz & 60 Hertz Speed - 1500 rpm @ 50Hz & 1800 rpm @ 60Hz Emissions/Fuel Strategy - EPA Tier 3, IMO II, EU IW ENGINE SPECIFICATIONS Aspiration - Turbocharged Aftercooled Bore - 105 mm Stroke - 135 mm Fuel System - Common Rail Engine Model - C9.3 GENERATOR SET DIMENSIONS Height - 1436 mm Length - Engine - 2170 mm Weight - Approximate - 2367 kg Width - Engine - 1260 mm GENERATOR SPECIFICATIONS Excitation - Permanent Magnet Insulation - Class H Drip Proof - IP23 Voltage Regulator - approx. 0.5% Number of Leads - 12-Lead 2 wires per lead
