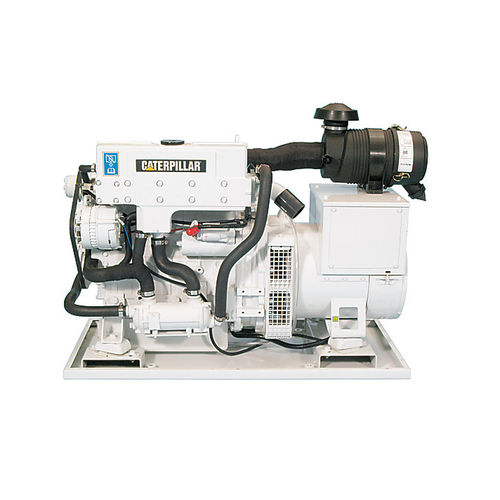

Yacht generator set C2.2

diesel

Cat® C2.2 Diesel Marine Generator Set has single phase ratings of 50 Hertz at 16.0 and 22.5 ekW and 60 Hertz at 19.0 and 27.0 ekW that meet U.S. EPA Tier 3 and EU IW emission standards.The Cat® C2.2 also has three phase ratings of 50 Hertz at 16.0 and 22.5 ekW and 60 Hertz at 19.5 and 27.0 ekW that meet U.S. EPA Tier 3 and EU IW emissions standards. This marine gen set is available in 12 or 24 volt as an open gen set or as an enclosed package. GENERATOR SET SPECIFICATIONS Minimum Rating - 16 ekW (16kVA) Maximum Rating - 27 ekW (27 kVA) Frequency - 50 Hz or 60 Hz Speed - 1500 rpm (50Hz) or 1800 rpm (60 Hz Emissions/Fuel Strategy - EPA Tier 3, IMO NST, EU IW ENGINE SPECIFICATIONS Engine Model - C2.2, In-line 4, 4-Stroke-Cycle Diesel Aspiration - Naturally Aspirated Bore - 84 mm Stroke - 100 mm Displacement - 2.2 l Governor Type - Electrical Ischronous Fuel System - Fuel filter — RH or LH service, fuel priming, fuel transfer pump, flexible fuel lines GENERATOR SPECIFICATIONS Excitation - AREP Pitch - 2/3 pitch Number of Poles - 4 Number of Leads - 4 Insulation - Class H Voltage Regulation - ±0.5% Frame Size - 2.2 IP Rating - 23 Wave Form Deviation - Line to Line - <2% Voltage Regulator - Steady State DIMENSIONS & WEIGHTS Minimum Approximate Weight - 389 kg Height - Enclosed Set - 775 mm Height - Open Set - 825 mm Width - Open Set - 521 mm Maximum Approximate Weight - 466 kg Length - Open Set - 1147 mm Width - Enclosed Set - 608 mm Length - Enclosed Set - 1170 mm
