Other ship mooring equipment

Standardized “ready-made” series Improve mooring safety and efficiency Viable alternative for bollards at commercial ports and harbors Trelleborg's marine systems operation has developed ReadyMoor Quick Release Hooks, a standardized ...

Flexible offering to cater for project specific requirements Load monitoring and remote release options available to enhance functionality Integration with other Trelleborg systems for complete berth management Field proven since ...

Positive locking, resetting and release operations Emergency releasable Optional load monitoring Trelleborg’s marine systems operation provides hawser hooks that are designed for safe mooring for FSO and FPSOs suitable for both bow ...

Motor power: 600 W
Voltage: 12 V
Rope diameter: 8, 6 mm

There are a number of important criteria to be considered when choosing the correct drum winch that will meet your needs. These include the vessel size, displacement, anchor size and rode selection. Muir offers and extensive range of ...

Motor power: 1,000 W
Voltage: 12, 24 V
Rope diameter: 10 mm

There are a number of important criteria to be considered when choosing the correct drum winch that will meet your needs. These include the vessel size, displacement, anchor size and rode selection. Muir offers and extensive range of ...

Motor power: 3, 4 kW
Voltage: 415, 24, 208 V
Rope diameter: 14, 16, 12 mm

The lightweight and versatile SD Series have been developed for multiple purpose work boats uses including fast ferries, charter, defence, offshore and on shore applications. Winches can be supplied as a complete package including electrical ...

The anchor 'D' end shackle is the second shackle from the anchor; the first is the crown shackle. We advise our customers to regularly check the condition of the anchor 'D' end shackle aboard their vessel to prevent premature loss of the anchor.

Chain cables can be connected by means of a Kenter joining shackle. A short instruction video about how Kenter joining shackles have to be mounted onto chain cables, can be found here.

This is the GJW Super Swivel (or GJW Superbox). Using less space, this shackle replaces the longer swivel forerunner (the anchor 'D' end shackle, swivel forerunner and enter joining shackle). The GJW Super swivel can be connected directly ...

Working load: 3,000 kg - 6,000 kg
Breaking load: 6,000, 12,000, 8,500 kg
Center diameter: 32, 22, 16 mm

HK16®, the Textile Hook® opening friction ring is the lightest and strongest sheet control solution on the market! This opening friction ring is easy to position on the rope and its double safety textile attachment system prevents ...

Working load: min 3000.0 kg
Breaking load: 60,000 kg
Center diameter: 16 mm

Pulley Hook HK16.2, the ideal pulley barber for spinnaker trimming downwind ! Double friction ring opening Textile Hook® that offers a fast and secure opening and closing thanks to the Velcro® Twist-Lock strap. The classic opening ...

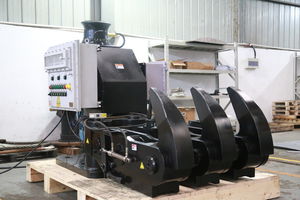

The Quick Release Mooring Hook is critical to ensure efficient mooring operations at jetties, quays, and ports. Safety is the overriding concern for any port operator, and the risk of damage or injury caused by failing mooring lines, ...

The Quick Release Mooring Hook is critical to ensure efficient mooring operations at jetties, quays, and ports. Safety is the overriding concern for any port operator, and the risk of damage or injury caused by failing mooring lines, ...

The Quick Release Mooring Hook is critical to ensure efficient mooring operations at jetties, quays, and ports. Safety is the overriding concern for any port operator, and the risk of damage or injury caused by failing mooring lines, ...

Motor power: 4.3 kW - 45 kW
Voltage: 220, 380 V
Rope diameter: 19 mm - 64 mm

- Driven mode: electric The winch AWC-E could be customized for capacity, working load, anchor chain grade, warping head, system of distant anchor recoil, starboard/port and other parameters under request.

Bollard pull: 100 kg
Rope diameter: 5 mm
Drum capacity: 35 m

The model GM hand winches are a base grade of Maxpull hand winches. With the built-in mechanical brake, the handle rotates clockwise to wind up, counterclockwise to wind down, and the brake is automatically applied at the stopped position ...

Bollard pull: 300 kg
Rope diameter: 6 mm
Drum capacity: 32 m

The model GM hand winches are a base grade of Maxpull hand winches. With the built-in mechanical brake, the handle rotates clockwise to wind up, counterclockwise to wind down, and the brake is automatically applied at the stopped position ...

Bollard pull: 500 kg
Rope diameter: 6 mm
Drum capacity: 40 m

The model GM hand winches are a base grade of Maxpull hand winches. With the built-in mechanical brake, the handle rotates clockwise to wind up, counterclockwise to wind down, and the brake is automatically applied at the stopped position ...

ASANO's legacy product, the Auto shackle has been developed to be used to connect a net and rings (purse rings) at the bottom of the net for purse seine fishing. Auto shackles have been developed to provide two functions that are usually ...

The main body is made of SUS316 that has higher corrosion resistance than SUS304. ■Material: SUS316

*Materials: SCS13 (equivalent to SUS 304) Pin: SUS304

The elephant foot and swivel hooks with 20 tons are widely used for RO-RO carlashing products, The breaking strength can be from 12T to 20T.

Marco designs and manufactures anchor windlasses and winches to order for applications of all types , including anchor winches for chain or rope line and combined anchor and mooring winches. Characteristics - The various winch models ...

Diameter: 54, 76 mm

For emergency mooring/towing according to OCIMF 2007 recommendations. Suitable for tankers, oil tankers and workboats. Available in standard lengths of 9 meters, diameters of 54 mm and 76 mm, grade 3. Certification available ...

The Neptunia Swivel Shackle is the connection between the anchor and the chain and is designed and suitable for all HHP and SHHP anchorages produced by Posidonia such as PTW and PTW+ anchors, HV and HV fully balanced anchors, Special ...

What are Type "A" and "B" Swivel Shackles? Type "A" and "B" Swivel Shackles are an accessory or a connection between the anchor and the chain that securely links them. Available in Grade 2 and 3. Type "A" and "B" Swivel Shackles ...

Motor power: 4 kW - 132 kW
Rope diameter: 11 mm - 90 mm
Drum capacity: 40 m - 250 m

Anchor winch is normally on small ship for retrieving or releasing anchor. Short length anchor chain links anchor and rest steel wire rope. The ship does not need to have anchor chain locker while use the winch drum to SWR storage. Main ...

Motor power: 3 kW - 75 kW
Rope diameter: 11 mm - 90 mm
Drum capacity: 40 m - 250 m

The power is from diesel engine to drive motor, to gearbox by shaft. It is normally been used where has limit electric capacity onboard. It is safe and easy to operate. Main Technical Specifications: Safety Pull Capacity: 10-300KN Speed: ...

JIS F2031 Roller Bar Type Chain Cable Stopper is mounted by welding on the foundation or on the forecastle deck.it can clamp the anchor chain when ship sails or drops anchor. It helps to reduce the working load of windlass, letting the ...

Bollard pull: 5 t
Rope diameter: 22 mm - 78 mm

YMV manufactures wide range of towing winches for Tugboats, Multipurpose Supply Vessels, Workboats, Multicats and AHTS vessels. YMV towing winches pull capacity may vary from 5 tonnes to 250 tonnes. Hydraulic or electric drive can ...

YMV Launch and Recovery Systems (LARS) A-Frame is the hydraulic driven crane system widely used on special purpose research vessels, supply vessels for oil platforms, oceonographic and deep sea research vessels. It is mainly used for ...

Motor power: 44 kW - 65 kW
Bollard pull: 7 t

The Petrel Anchor Winch range accommodates a wide range of vessel sizes. The Standard Anchor Winch models cater for chain sizes from 16mm to 40mm. The chainwheel (two chain wheels on the larger models) is tailor made to suit the chain ...

Motor power: 36 kW - 55 kW
Bollard pull: 9 t

The Petrel Anchor Winch range accommodates a wide range of vessel sizes. The Standard Anchor Winch models cater for chain sizes from 16mm to 40mm. The chainwheel (two chain wheels on the larger models) is tailor made to suit the chain ...

Bollard pull: 1 t

The Petrel Combination Anchor Winch range is a combination of an Anchor Winch and a Wire Rope Winch or a Capstan. The models range from a 1,2 ton pull to a 9,9 ton pull. The chainwheel is tailor made to suit the chain size specified. ...

Standard equipment The winch consists of: - hydraulic motor, directly coupled on drum - drum for rope (chain) - bearing - side frame with distant rod The hydraulic motor is orbital type with by pass valve. Drum and frame are made ...

Material : Forged alloy steel quenched and tempered Safety factor : 5 times Finish : Galvanised with stainless steel cotterpins Temperature range : -40°C up to +200°C; Polar Rated Standard certification : Certificate of Conformity 3.1 ...

Material : Alloy steel quenched and tempered Safety factor : ≤ 2000 ton 5 times ˃ 2000 ≤ 3000 ton 4,5 times ˃ 3000 ton 4 times Finish : Painted Temperature range : ≤ 40 ton -20°C up to +200°C ˃ 40 ton -40°C up to +200°C; Polar Rated Standard ...

Material : Body: High tensile steel Pin: Alloy steel quenched and tempered Finish : Painted Temperature range : -20°C up to +200°C Standard certification : Certificate of Conformity 3.1 material certificate EN 10204

These cast steel deck fittings are for use on workboats, barges and docks.

Motor power: 1,500, 4,500, 2,500 W

Elite Series by LSM. The Elite Series boast two brand new features on any anchor winch. Brushless motor technology, and CNC’d billet aluminium transmissions (Elite2-5). These winches were designed to work hard, day after day and are right ...
