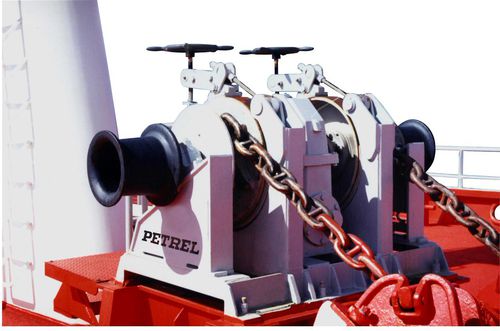

Ship winch AW-14-DD anchorhydraulic drivedouble-drum
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Application domain
- for ships
- Use
- anchor
- Drive mechanism
- hydraulic drive
- Technology
- double-drum
- Motor power
Min.: 36 kW
(48.95 hp)Max.: 55 kW
(74.78 hp)- Bollard pull
2,800 kg, 3,300 kg, 5,800 kg, 7,300 kg, 9,400 kg
(6,173 lb, 7,275 lb, 12,787 lb, 16,094 lb, 20,723 lb)- Drum speed
Min.: 12 m/min
Max.: 22 m/min
Description
The Petrel Anchor Winch range accommodates a wide range of vessel sizes. The Standard Anchor Winch models cater for chain sizes from 16mm to 40mm. The chainwheel (two chain wheels on the larger models) is tailor made to suit the chain size specified. The option of a warping head (two warping heads on the larger models) allows for further winching possibilities.
The Anchor Winch is a hydraulically powered unit with manually operated brakes and clutches. All the Anchor Winches are direct controlled by means of a control valve with integral pressure relief and anti-cavitation valves
Chain speed (at recom. supply):
12 – 18 m/min (38mm)
Recommended supply:
Oil flow: - 100 – 150 l/min
Oil pressure: 17.5 MPa
Drive: 1 x hyd. Motor
Chain size: 34 – 40 mm stud link
Mass: 2.620 ton
Features
Marine finish - to steel structure: Standard
Warping head: 2
Brake: Manually operated
Clutch: Manually operated
Stainless st. pins/bolts < Ø 50mm/M12 - Standard
Classification - Optional
