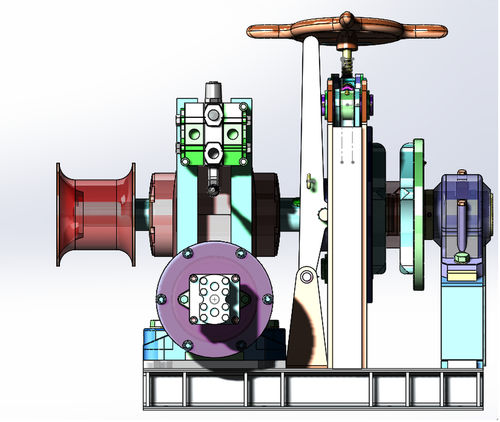

Ship winch
anchorhydraulic drivesingle-drum

ship winch
ship winch
ship winch
ship winch
Add to favorites
Compare this product


Application domain
for ships
Drive mechanism
hydraulic drive
Motor power

Max.: 65 kW (88.38 hp)

Min.: 44 kW (59.82 hp)

Pulling force

7 t (8 us ton)


The Petrel Anchor Winch range accommodates a wide range of vessel sizes. The Standard Anchor Winch models cater for chain sizes from 16mm to 40mm. The chainwheel (two chain wheels on the larger models) is tailor made to suit the chain size specified. The option of a warping head (two warping heads on the larger models) allows for further winching possibilities. The Anchor Winch is a hydraulically powered unit with manually operated brakes and clutches. All the Anchor Winches are direct controlled by means of a control valve with integral pressure relief and anti-cavitation valves. There are several models for this product (more information on our site): AW-14-D, AW-12-D, AW10.2-D, AW-80-D, AW-65-D. Chain speed (at recom. supply): 15 – 22 m/min (32mm) Recommended supply: Oil flow: - 120 – 180 l/min Oil pressure: 17.5 MPa Drive: 1 x hyd. Motor Chain size: 26 – 34mm stud link Mass: 2.050 ton Features Marine finish - to steel structure: Standard Warping head: 1 or 2 - Standard Brake: Manually operated Clutch: Manually operated Stainless st. pins/bolts < Ø 50mm/M12 - Standard Classification - Optional
