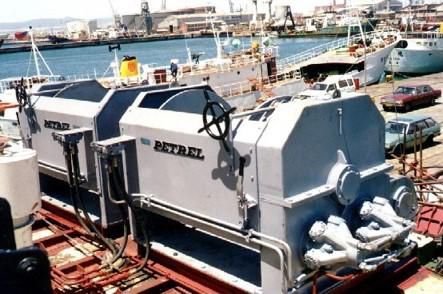

Ship winch AW/VC-65-E
anchormooringhydraulic drive

Ship winch - AW/VC-65-E - Petrel International - anchor / mooring / hydraulic drive
Ship winch - AW/VC-65-E - Petrel International - anchor / mooring / hydraulic drive
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Application domain
for ships
Use
anchor, mooring
Drive mechanism
hydraulic drive
Motor power

Max.: 65 kW
(88.38 hp)

Min.: 4 kW
(5.44 hp)

Bollard pull

1,200 kg, 3,300 kg, 5,800 kg, 7,300 kg, 9,400 kg
(2,646 lb, 7,275 lb, 12,787 lb, 16,094 lb, 20,723 lb)

Drum speed

Max.: 24 m/min

Min.: 12 m/min

Description

The Petrel Combination Anchor Winch range is a combination of an Anchor Winch and a Wire Rope Winch or a Capstan. The models range from a 1,2 ton pull to a 9,9 ton pull. The chainwheel is tailor made to suit the chain size specified. The option of a warping head (two warping heads on the larger models) allows for further winching possibilities. The Combination Anchor Winch is a hydraulically powered unit with manually operated brakes and clutches. All the Anchor Winches are direct controlled by means of a control valve with integral pressure relief and anti-cavitation valves Chain speed: 14.2 m/min Warping head pull: 0.9 ton Warping head speed: 19.5 m/min Recommended supply Oil flow: N/A Oil pressure: N/A Power: N/A Chain size: 16 mm stud link Rope size: N/A Mass: 0.520 ton Features and options Marine finish - to steel structure: Standard Warping head: 1 off - standard Brake: Manually operated Clutch: Manually operated Stainless st. pins/bolts <Ø 50mm: Standard
