A COMPLETE STEERING SYSTEM CONSISTS OF:
• Steering helm:

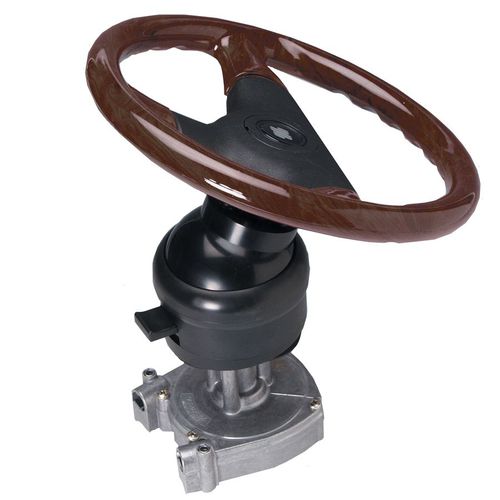

T81FC - 38957J single cable steering helm
T83NRFC - 38959N anti-feedback single cable steering helm
• Tilt mechanism: X52 - 39250U
NOTE: X52 tilt mechanism fits Ultraflex tilt mount rotary and rack and pinion steering helms as well as Ultraflex tilt mount hydraulic pumps except SilverSteer™ and MasterDrive™ steering systems
• Steering cable: M66
• Optional steering wheel
• Engine connection kits
FEATURES AND TECHNICAL SPECIFICATIONS:
• Tilt range of 48° and five locking positions
• Fast connect, simple installation
• Tilt device eliminates underdash movement
• Standard 3/4” tapered shaft - stainless steel
• All stainless steel cable output ends
• Corrosion resistant materials
• Lock-to-lock steering wheel turns: approx. 3,8
• Stroke: 228 mm (9”)
• Maximum allowable steering wheel diameter: 406 mm (16”)
• Minimum steering cable bend radius: 200 mm (7.9”)
• T81FC and T83NRFC steering systems are not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat
• For boats faster than 50 mph Ultraflex hydraulic steering systems are recommended
• Exceeds EN 28848 safety standards
• Exceeds ABYC P17 safety standards
