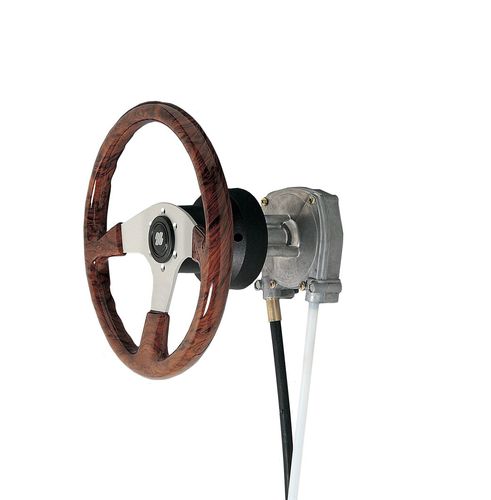

Motor boat steering T71FC
pull wire

motor boat steering
motor boat steering
motor boat steering
motor boat steering
motor boat steering
Add to favorites
Compare this product


Characteristics

Application domain
for motor boats
Operation
pull wire

Description

A COMPLETE STEERING SYSTEM CONSISTS OF: • Steering helm: T71FC - 38867H - single cable steering helm T72FC - 38868K - dual cable steering helm • Mounting bezel: X34 - 36654B - black, 90° mounting X34W - 40654C - white, 90° mounting X35 - 36655C - black, 20° mounting • Steering cable: M66 NOTE: two M66 are needed with the T72FC system • Steering wheel • Engine connection kits FEATURES AND TECHNICAL SPECIFICATIONS: • Fast connect, simple installation • All stainless steel cable output ends • Corrosion resistant materials • Particulary suitable where clearance is limited • Optional 90° or 20° installation • Standard 3/4” tapered shaft • Lock-to-lock steering wheel turns: approx. 3,8 • Stroke: 228 mm (9”) • Maximum allowable steering wheel diameter: 406 mm (16”) • Minimum steering cable bend radius: 200 mm (7.9”) • Minimal feedback • Compact for mounting • T71FC and T72FC steering systems are not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat • For boats faster than 50 mph Ultraflex hydraulic steering systems are recommended • T71FC steering system is also available in package with ROTECH-I • Exceeds EN 28848 safety standards • Exceeds ABYC P17 safety standards
