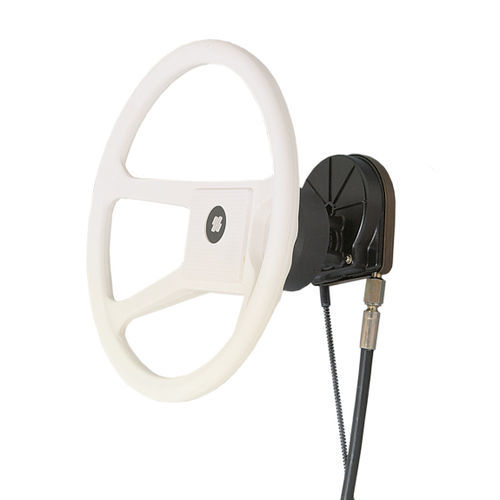

Motor boat steering T67

pull wire

A COMPLETE STEERING SYSTEM CONSISTS OF: • Steering helm with friction T67 - 35809J - Black bezel T67W - 37925M - White bezel • Steering cable: M58 available in one foot increments • Optional steering wheel • Engine connection kits FEATURES AND TECHNICAL SPECIFICATIONS: • All stainless steel output end of cable as per ABYC P17 safety standards • Corrosion resistant materials • Standard friction externally adjustable • 90° bezel • Four optional helm positions to facilitate steering cable installation • Lock-to-lock steering wheel turns: approx. 2,5 • Stroke: 230 mm (9”) • Maximum allowable steering wheel diameter: 380 mm (15”) • Minimum steering cable bend radius: 200 mm (7,9”) • Available in package with ROTECH-IV • Exceeds EN 29775 safety standards • APPLICATIONS: for use with outboard engines up to 40 kW (55 hp) with the exception of EVINRUDE E-TEC™ 50 for which the use of T85 or T71FC is recommended.
